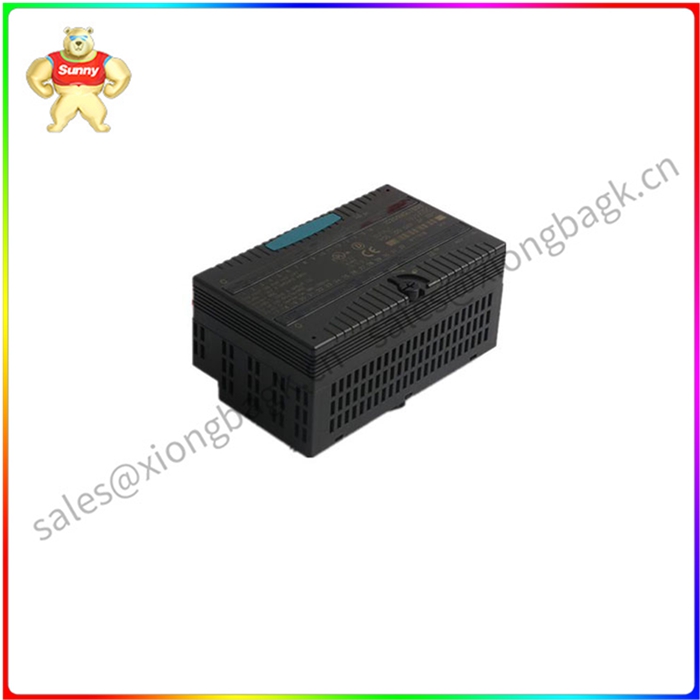

IC200MDL640D 24 伏直流正/负逻辑输入模块

IC200MDL640D 24 伏直流正/负逻辑输入模块

IC200MDL640D是 GE Fanuc 的 VersaMax I/O 平台中的多功能 24 VDC 正/负逻辑输入模块。它旨在采集和处理来自各种工业传感器、开关和其他设备的数字输入信号，在工业自动化应用中发挥着至关重要的作用。

IC200MDL640D 24 VDC 正/负逻辑输入模块的主要特性：

64 个数字输入通道：该IC200MDL640D提供 64 个独立的数字输入通道，可监控大量输入信号。

正负逻辑支持：它支持正逻辑（拉电流）和负逻辑（灌电流）输入信号，适合各种传感器和开关类型。

高速响应：该模块提供小于 1 ms 的高速响应时间，确保及时检测输入信号变化。

抗噪性：它具有抗噪功能，可zui大限度地减少电噪声和干扰对信号完整性的影响。

光隔离：它在输入通道和内部电路之间提供光隔离，防止电噪声和干扰。

诊断 LED：状态 LED（INT PWR LED 和 OK LED）分别指示存在内部电源和正确的背板连接。

低背板电流消耗：该模块在 5 VDC 时的zui大背板电流为 130 mA，从而zui大限度地降低了功耗。

内部断电诊断：它集成了内部断电诊断功能，可检测和报告任何电源问题。

可配置的输入滤波器：输入滤波器可以配置为滤除不需要的噪声和瞬态，确保可靠的信号处理。

去抖时间调整：可以调整去抖时间以消除机械开关的触点反弹，防止误触发。

IC200MDL640D 24 VDC 正/负逻辑输入模块的应用：

机器控制：该IC200MDL640D广泛用于机器控制应用，以监控机器部件（如限位开关、按钮和传感器）的状态，从而实现实时控制和安全联锁。

输送系统：它可以用于输送系统，以监控产品的位置、检测堵塞和控制输送机速度，确保高效、安全地处理产品。

包装系统：该IC200MDL640D在包装系统中找到了应用，以跟踪产品移动、控制灌装和密封操作以及识别潜在的包装缺陷。

过程控制：它可用于过程控制应用，以监控过程参数，如温度、压力和流量，从而实现实时过程调整和优化。

安全系统：该IC200MDL640D适用于安全系统，用于监控安全联锁、紧急停止和人员在场，确保人员和设备的安全。

IC200MDL640D 24 伏直流正/负逻辑输入模块

The IC200MDL640D is a versatile 24-VDC positive/negative logic input module in GE Fanuc's VersaMax I/O platform. It is designed to collect and process digital input signals from various industrial sensors, switches and other devices, playing a vital role in industrial automation applications.

IC200MDL640D 24 VDC positive/negative logic input module Main features:

64 digital input channels: The IC200MDL640D provides 64 independent digital input channels to monitor a large number of input signals.

Positive and negative logic support: It supports both positive logic (pull current) and negative logic (fill current) input signals and is suitable for various sensor and switch types.

High-speed response: The module provides a high-speed response time of less than 1 ms, ensuring timely detection of input signal changes.

Anti-noise: It has anti-noise features to minimize the impact of electrical noise and interference on signal integrity.

Optical isolation: It provides optical isolation between the input channel and the internal circuit, preventing electrical noise and interference.

Diagnostic leds: Status leds (INT PWR LED and OK LED) indicate the presence of internal power and the correct backplane connection, respectively.

Low backplane current consumption: The module has a maximum backplane current of 130 mA at 5 VDC, which minimizes power consumption.

Internal power outage Diagnostics: It integrates internal power outage diagnostics to detect and report any power problems.

Configurable input filters: Input filters can be configured to filter out unwanted noise and transients, ensuring reliable signal processing.

Shaking time adjustment: The shaking time can be adjusted to eliminate the rebound of the contact of the mechanical switch to prevent false triggering.

IC200MDL640D 24 VDC positive/negative logic input module application:

Machine control: The IC200MDL640D is widely used in machine control applications to monitor the status of machine components such as limit switches, buttons and sensors for real-time control and safe interlocking.

Conveyor systems: It can be used in conveyor systems to monitor product position, detect clogging and control conveyor speed to ensure efficient and safe product handling.

Packaging systems: The IC200MDL640D finds applications in packaging systems to track product movement, control filling and sealing operations, and identify potential packaging defects.

Process control: It can be used in process control applications to monitor process parameters such as temperature, pressure, and flow for real-time process adjustment and optimization.

Safety systems: The IC200MDL640D is suitable for safety systems that monitor safety interlocks, emergency stops and personnel presence to ensure the safety of personnel and equipment.
