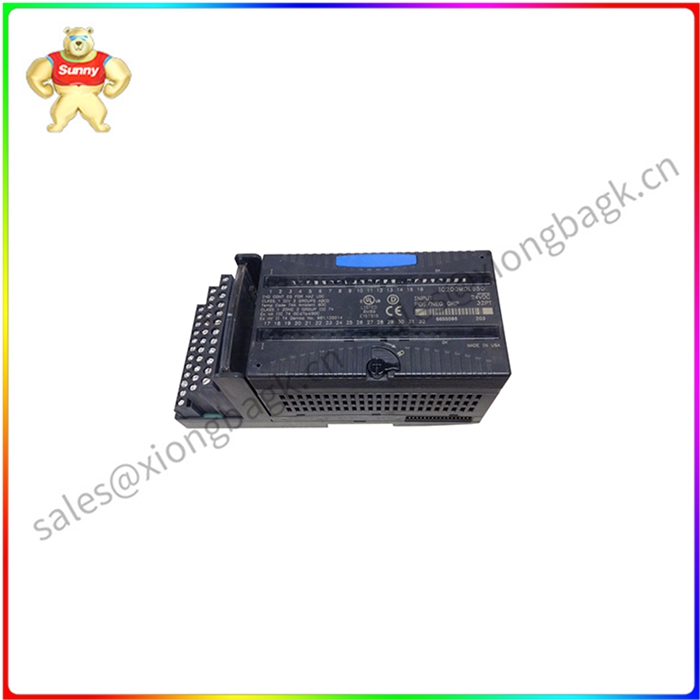

IC200MDL650 I/O 系列的 32 点分立式输入模块

IC200MDL650 I/O 系列的 32 点分立式输入模块

IC200MDL650是 GE Fanuc 的 VersaMax I/O 平台中的多功能 32 点离散输入模块。它旨在采集和处理来自各种工业传感器、开关和其他设备的数字输入信号，在工业自动化应用中发挥着至关重要的作用。

IC200MDL650 32 点离散输入模块的主要特性：

32 个输入通道：该IC200MDL650提供 32 个独立的输入通道，可监控大量输入信号。

正负逻辑支持：它支持正逻辑（拉电流）和负逻辑（灌电流）输入信号，适合各种传感器和开关类型。

高速响应：该模块提供小于 1 ms 的高速响应时间，确保及时检测输入信号变化。

抗噪性：它具有抗噪功能，可zui大限度地减少电噪声和干扰对信号完整性的影响。

光隔离：它在输入通道和内部电路之间提供光隔离，防止电噪声和干扰。

诊断 LED：状态 LED（INT PWR LED 和 OK LED）分别指示存在内部电源和正确的背板连接。

低背板电流消耗：该模块在 5 VDC 时的zui大背板电流为 130 mA，从而zui大限度地降低了功耗。

内部断电诊断：它集成了内部断电诊断功能，可检测和报告任何电源问题。

可配置的输入滤波器：输入滤波器可以配置为滤除不需要的噪声和瞬态，确保可靠的信号处理。

去抖时间调整：可以调整去抖时间以消除机械开关的触点反弹，防止误触发。

IC200MDL650 I/O 系列的 32 点分立式输入模块

The IC200MDL650 is a versatile 32-point discrete input module in GE Fanuc's VersaMax I/O platform. It is designed to collect and process digital input signals from various industrial sensors, switches and other devices, playing a vital role in industrial automation applications.

Main features of IC200MDL650 32-point discrete input module:

32 input channels: The IC200MDL650 provides 32 independent input channels to monitor a large number of input signals.

Positive and negative logic support: It supports both positive logic (pull current) and negative logic (fill current) input signals and is suitable for various sensor and switch types.

High-speed response: The module provides a high-speed response time of less than 1 ms, ensuring timely detection of input signal changes.

Anti-noise: It has anti-noise features to minimize the impact of electrical noise and interference on signal integrity.

Optical isolation: It provides optical isolation between the input channel and the internal circuit, preventing electrical noise and interference.

Diagnostic leds: Status leds (INT PWR LED and OK LED) indicate the presence of internal power and the correct backplane connection, respectively.

Low backplane current consumption: The module has a maximum backplane current of 130 mA at 5 VDC, which minimizes power consumption.

Internal power outage Diagnostics: It integrates internal power outage diagnostics to detect and report any power problems.

Configurable input filters: Input filters can be configured to filter out unwanted noise and transients, ensuring reliable signal processing.

Shaking time adjustment: The shaking time can be adjusted to eliminate the rebound of the contact of the mechanical switch to prevent false triggering.
