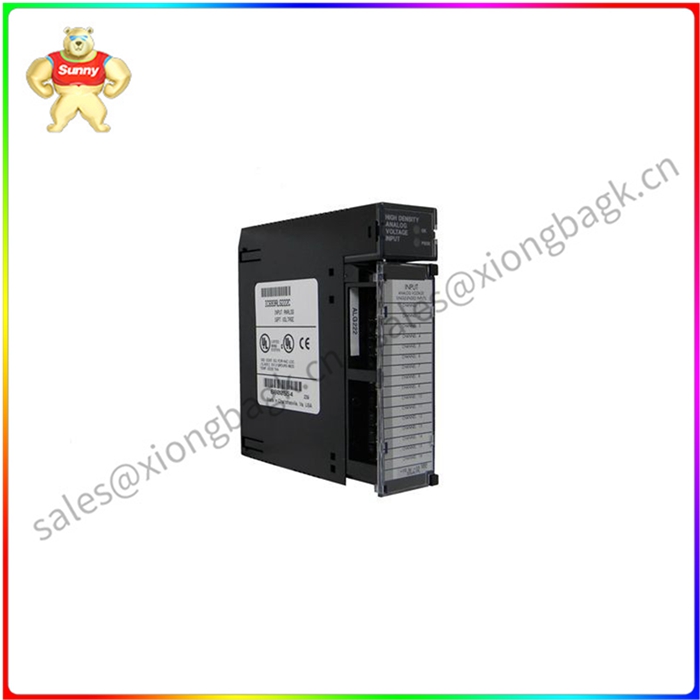

IC693ALG222 16通道模拟电压输入模块

IC693ALG222 16通道模拟电压输入模块

IC693ALG222是GE Fanuc（现为Emerson Automation）的Field Control系列的16通道模拟电压输入模块。它旨在将来自各种工业传感器、变送器和其他设备的模拟电压信号转换为可由可编程逻辑控制器 （PLC） 或其他控制系统处理的数字数据。

IC693ALG222模拟电压输入模块的主要特点：

16 个独立输入通道：该IC693ALG222提供 16 个独立的输入通道，每个通道能够接受 -10 V 至 +10 V 范围内的模拟电压信号。

高分辨率：它提供 12 位的高分辨率，确保将模拟电压信号准确转换为数字数据。

转换时间短：该模块具有每通道 60 微秒的低转换时间，可实现快速响应的数据采集。

可扩展的输入范围：输入范围可配置为-10 V至+10 V或0 V至+10 V，可灵活适应不同的传感器类型和信号电平。

诊断 LED：状态 LED（INT PWR LED、OK LED 和 IN LED）分别指示输入电源的存在、模块的正常运行以及每个输入通道的状态。

IC693ALG222模拟电压输入模块的应用：

过程控制系统：IC693ALG222通常用于过程控制系统中，用于监控温度、压力、流量和液位等过程参数，这些参数通常表示为模拟电压信号。

工厂自动化系统：它可用于工厂自动化系统，以监控传感器和执行器的状态，这些传感器和执行器通常提供模拟电压反馈信号。

机器控制系统：该模块在机器控制系统中应用，用于监控电机和其他执行器的位置、速度和扭矩，这些通常表示为模拟电压信号。

环境监测系统：它可用于环境监测系统，从测量温度、湿度、压力和其他环境参数的传感器收集数据，通常以模拟电压信号的形式传输。

测试和测量应用：该IC693ALG222适用于需要准确采集模拟电压信号并将其转换为数字数据进行分析或记录的测试和测量应用。

IC693ALG222 16通道模拟电压输入模块

The IC693ALG222 is a 16-channel analog voltage input module in the Field Control family of GE Fanuc (now Emerson Automation). It is designed to convert analog voltage signals from various industrial sensors, transmitters, and other devices into digital data that can be processed by programmable logic controllers (PLCS) or other control systems.

Main features of IC693ALG222 analog voltage input module:

16 independent input channels: The IC693ALG222 provides 16 independent input channels, each capable of accepting analog voltage signals in the range -10 V to +10 V.

High resolution: It provides 12-bit high resolution, ensuring accurate conversion of analog voltage signals into digital data.

Short conversion time: The module has a low conversion time of 60 microseconds per channel, enabling fast response data acquisition.

Scalable input range: The input range can be configured from -10 V to +10 V or 0 V to +10 V, allowing flexibility to adapt to different sensor types and signal levels.

Diagnostic leds: Status leds (INT PWR LED, OK LED, and IN LED) indicate the presence of input power, the normal operation of the module, and the status of each input channel, respectively.

Application of IC693ALG222 analog voltage input module:

Process control systems: IC693ALG222 is commonly used in process control systems to monitor process parameters such as temperature, pressure, flow, and level, which are often represented as analog voltage signals.

Factory automation systems: It can be used in factory automation systems to monitor the status of sensors and actuators that typically provide analog voltage feedback signals.

Machine control systems: This module is used in machine control systems to monitor the position, speed and torque of motors and other actuators, which are often expressed as analog voltage signals.

Environmental monitoring systems: It can be used in environmental monitoring systems to collect data from sensors that measure temperature, humidity, pressure, and other environmental parameters, usually transmitted in the form of analog voltage signals.

Test and Measurement applications: The IC693ALG222 is suitable for test and measurement applications where analog voltage signals need to be accurately captured and converted into digital data for analysis or recording.
