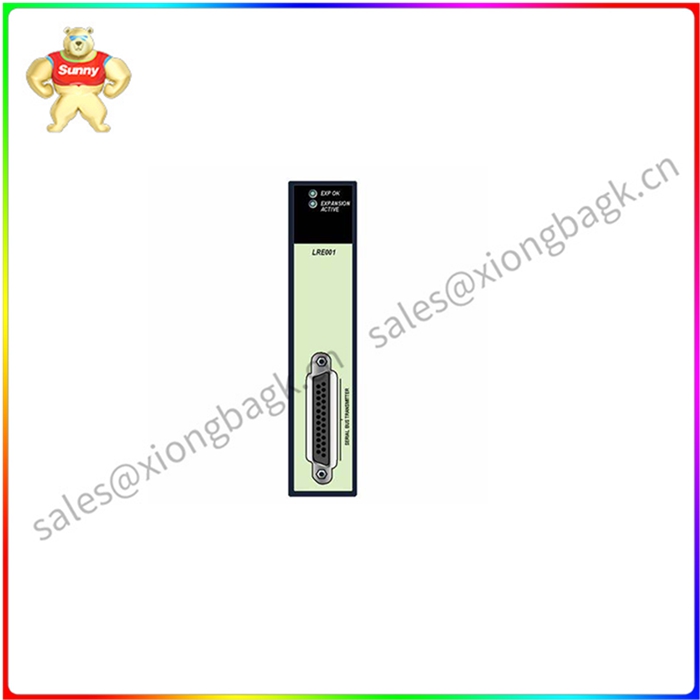

IC695LRE001C 串行总线发射模块

IC695LRE001C 串行总线发射模块

 IC695LRE001 模块的主要功能摘要：

串行总线发射器：IC695LRE001模块充当串行总线发送器，将通用背板的信号电平转换为串行扩展和远程背板所需的电平。

RS-232 串口：该模块具有一个 RS-232 串行端口，用于与串行设备通信。

有效数据速率：RS-232 串行端口的有效数据速率为 500 千比特/秒 （kbps）。

电缆长度：扩展背板的zui大电缆长度为 50 英尺，远程背板的zui大电缆长度为 700 英尺。

LED 状态指示灯：该模块有两个 LED 状态指示灯：

扩展正常：此 LED 指示扩展背板已正确连接并通电。

扩展活动：此 LED 表示模块正在与扩展背板通信。

热插拔：IC695LRE001模块是可热插拔的，这意味着可以在 PLC 运行时将其拆卸和插入，而不会中断操作。

IC695LRE001模块的应用：

将 RX3i PLC 连接到串行设备：IC695LRE001模块可用于将RX3i PLC连接到各种串行设备，如条形码阅读器、打印机和传感器。

扩展 RX3i I/O 容量：该模块可用于通过添加串行扩展和远程背板来扩展 RX3i PLC 的 I/O 容量。

远程 I/O 应用：该模块可用于远程 I/O 应用，其中 I/O 模块位于与 PLC 不同的位置。

总体而言，GE Fanuc IC695LRE001模块是一款多功能且可靠的串行总线发送器模块，可用于各种工业自动化应用。

IC695LRE001C 串行总线发射模块

Summary of the main functions of the IC695LRE001 module:

Serial bus transmitter: The IC695LRE001 module acts as a serial bus transmitter, converting the signal levels of the universal backplane to those required for serial expansion and remote backplanes.

RS-232 Serial port: This module has an RS-232 serial port for communication with serial devices.

Effective data rate: The effective data rate of the RS-232 serial port is 500 kilobits per second (kbps).

Cable length: Maximum cable length is 50 feet for expansion backplanes and 700 feet for remote backplanes.

LED Status indicator: The module has two LED status indicators:

Expansion Normal: This LED indicates that the expansion backplane is properly connected and powered.

Expansion activity: This LED indicates that the module is communicating with the expansion backplane.

Hot swappable: The IC695LRE001 module is hot swappable, which means that it can be removed and inserted while the PLC is running without interrupting operation.

Application of IC695LRE001 module:

Connecting RX3i PLCS to serial devices: The IC695LRE001 module can be used to connect RX3i PLCS to various serial devices such as barcode readers, printers and sensors.

Expanding RX3i I/O capacity: This module can be used to expand the I/O capacity of the RX3i PLC by adding serial extensions and remote backplanes.

Remote I/O applications: This module can be used for remote I/O applications where the I/O module is located in a different location than the PLC.

Overall, the GE Fanuc IC695LRE001 module is a versatile and reliable serial bus transmitter module that can be used in a variety of industrial automation applications.
