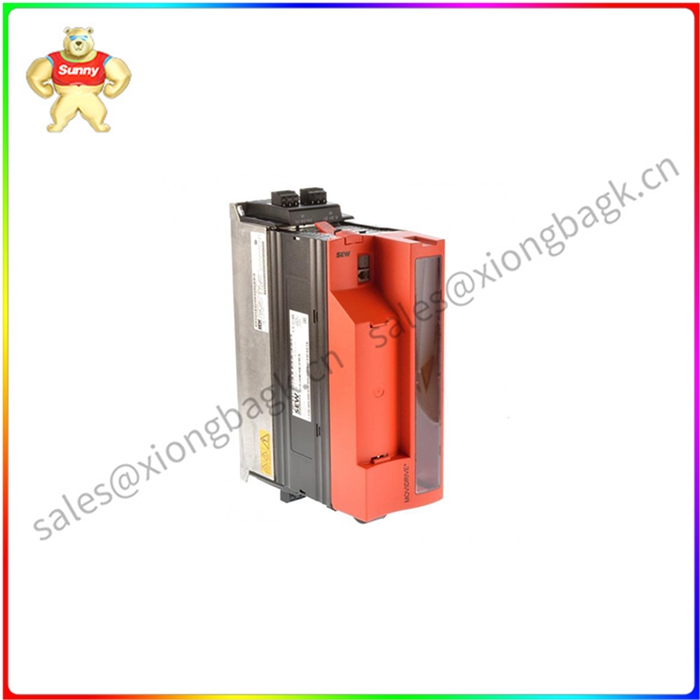

MDX61B0220-5A3-4-00 是一款由德国 SEW-EURODRIVE GmbH & Co. KG 生产的紧凑型变频驱动器，可用于控制各种交流电机。

它具有以下特点：

紧凑型设计： MDX61B0220-5A3-4-00 采用紧凑型设计，尺寸为 120 mm x 90 mm x 70 mm，可节省安装空间。
高性能： MDX61B0220-5A3-4-00 具有高性能，可提供高达 2.2 kW 的功率输出，并支持多种控制模式，包括速度控制、位置控制和扭矩控制。
易于使用： MDX61B0220-5A3-4-00 易于使用，可通过内置的键盘或外部控制面板进行操作。
多种通信接口： MDX61B0220-5A3-4-00 提供多种通信接口，包括 RS-232、RS-485 和 CAN，方便与上位控制器进行通信。
应用

MDX61B0220-5A3-4-00 可广泛应用于各种工业领域，包括：

传送机： 控制传送机的速度和位置。
包装机械： 控制包装机械的运动和操作。
印刷机： 控制印刷机的速度、位置和精度。
机器人： 控制机器人的运动和操作。
数控机床： 控制数控机床的运动和加工。
HVAC 系统： 控制风扇、泵等 HVAC 设备的速度。
技术规格

参数    值
电源电压    3 x 380 – 500 伏交流电
额定功率    2.2 千瓦
额定电流    4.1 安培
额定转速    1500转/分
速度控制范围    0 至 1500 rpm
位置控制精度    ±0.01°
扭矩控制精度    ±1%
通信接口    RS-232、RS-485、CAN接口
尺寸    120 毫米 x 90 毫米 x 70 毫米
重量    1.5 千克

MDX61B0220-5A3-4-00 用于节省空间安装的紧凑型

MDX61B0220-5A3-4-00 Compact for space-saving installation
The MDX61B0220-5A3-4-00 is a compact variable frequency drive manufactured by SEW-EURODRIVE GmbH & Co. KG in Germany that can be used to control a variety of AC motors.

It has the following characteristics:

Compact design: The MDX61B0220-5A3-4-00 features a compact design with dimensions of 120 mm x 90 mm x 70 mm to save installation space.
High performance: The MDX61B0220-5A3-4-00 offers high performance, up to 2.2 kW of power output, and supports a variety of control modes including speed control, position control and torque control.
Easy to use: The MDX61B0220-5A3-4-00 is easy to use and can be operated via the built-in keyboard or external control panel.
Multiple communication interfaces: MDX61B0220-5A3-4-00 provides a variety of communication interfaces, including RS-232, RS-485 and CAN, to facilitate communication with the upper controller.
Apply

MDX61B0220-5A3-4-00 can be used in a wide range of industrial applications, including:

Conveyor: Control the speed and position of the conveyor.
Packaging machinery: Control the movement and operation of packaging machinery.
Printing press: Control the speed, position and accuracy of the printing press.
Robots: Control the movement and operation of robots.
CNC machine tools: Control the movement and machining of CNC machine tools.
HVAC system: Control the speed of HVAC equipment such as fans and pumps.
Technical specification

Parameter value
Power supply voltage 3 x 380-500 volts AC
Rated power 2.2 kW
Rated current 4.1 amps
Rated speed 1500 RPM
Speed control range 0 to 1500 rpm
Position control accuracy ±0.01°
Torque control accuracy ±1%
Communication interface RS-232, RS-485, CAN interface
Dimensions 120 mm x 90 mm x 70 mm
Weight 1.5 kg
