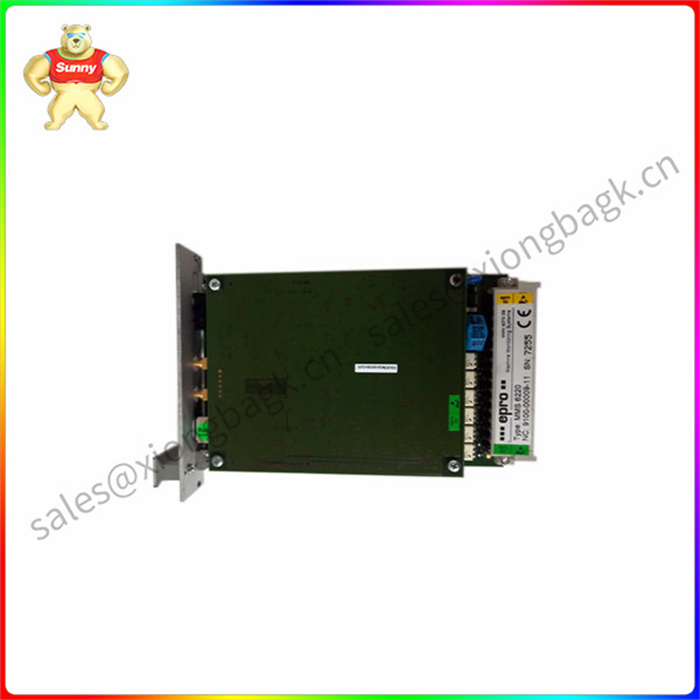

MMS6220 9100-00009-11 双通道轴位移测量模块

MMS6220 9100-00009-11 双通道轴位移测量模块

MMS6220 9100-00009-11 是一款由德国 Mayr Antriebstechnik GmbH 生产的双通道轴位移测量模块，用于测量轴的位移量。

它具有以下特点：

高精度：MMS6220 9100-00009-11 测量精度可达 ±0.2 μm，可满足高精度测量需求。
高分辨率：MMS6220 9100-00009-11 分辨率可达 0.02 μm，可实现精细的测量。
宽量程：MMS6220 9100-00009-11 量程可达 ±10 mm，可满足不同应用需求。
非接触测量：MMS6220 9100-00009-11 采用非接触测量方式，不会对被测物体造成损伤。
坚固耐用的设计：MMS6220 9100-00009-11 采用坚固耐用的设计，可确保长期可靠运行，防护等级为 IP67。
应用

MMS6220 9100-00009-11 可广泛应用于各种工业领域，包括：

精密机械： 测量精密机械的轴位移量，确保机械的精度和可靠性。
半导体制造： 测量半导体制造设备的轴位移量，确保产品的精度和良率。
医疗器械： 测量医疗器械的轴位移量，确保医疗器械的安全性。
机器人： 测量机器人的关节位移量，提高机器人的运动精度。
3D 打印： 测量3D打印机的轴位移量，确保打印精度。
技术规格

参数    值
测量精度    ±0.2微米
分辨率    0.02微米
量程    ±10 毫米
非线性误差    ±0.1% FS
温度漂移    ±0.005%/°C
重复性    0.04微米
响应频率    10 千赫兹
电源电压    24 伏直流电
功耗    5 瓦
防护等级    IP67防护等级
尺寸    40 毫米 x 40 毫米 x 20 毫米
重量    100 克

MMS6220 9100-00009-11 双通道轴位移测量模块

The MMS6220 9100-00009-11 is a two-channel shaft displacement measurement module manufactured by Mayr Antriebstechnik GmbH in Germany for measuring the displacement of shafts.

It has the following characteristics:

High precision: The MMS6220 9100-00009-11 measurement accuracy can reach ± 0.2μm, which can meet the needs of high precision measurement.
High resolution: The MMS6220 9100-00009-11 has a resolution of up to 0.02 μm for fine measurements.
Wide range: MMS6220 9100-00009-11 Measuring range up to ±10 mm, can meet different application requirements.
Non-contact measurement: MMS6220 9100-00009-11 Adopts non-contact measurement mode, which will not cause damage to the measured object.
Rugged design: The MMS6220 9100-00009-11 features a rugged design for long-term reliable operation with IP67 protection.
Apply

MMS6220 9100-00009-11 can be used in a wide range of industrial applications, including:

Precision machinery: Measuring the axial displacement of precision machinery to ensure the accuracy and reliability of the machinery.
Semiconductor manufacturing: Measuring the axial displacement of semiconductor manufacturing equipment to ensure product accuracy and yield.
Medical devices: Measure the axial displacement of medical devices to ensure the safety of medical devices.
Robot: Measure the joint displacement of the robot to improve the motion accuracy of the robot.
3D printing: Measure the axis displacement of the 3D printer to ensure printing accuracy.
Technical specification

Parameter value
Measuring accuracy ±0.2 micron
Resolution 0.02 micron
Measuring range ±10 mm
The nonlinear error is ±0.1% FS
Temperature drift ±0.005%/°C
Repeatability 0.04 microns
Response frequency 10 kilohertz
Power supply voltage 24 volts DC
Power consumption 5 watts
Protection Level IP67 Protection level
Dimensions 40 mm x 40 mm x 20 mm
Weight 100g
