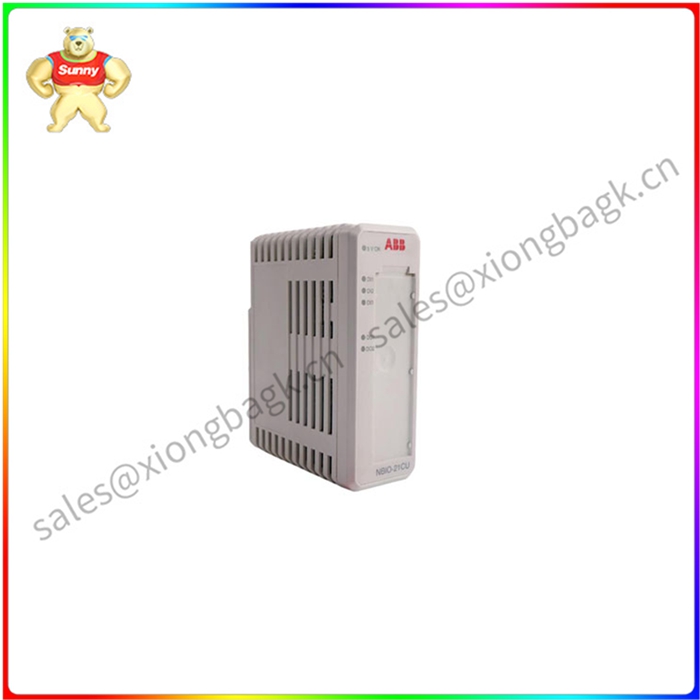

NBIO-21CU 3BSE017427R1 输入输出模块

NBIO-21CU  3BSE017427R1 输入输出模块

概述

NBIO-21CU 3BSE017427R1 是一款功能强大的输入输出模块，用于连接各种传感器和执行器。它由 Beckhoff Automation GmbH & Co. KG 开发和制造，部件号为 3BSE017427R1。NBIO-21CU 具有以下特点：

通用性强： NBIO-21CU 支持多种输入输出类型，包括模拟量输入、模拟量输出、数字量输入、数字量输出和脉冲输出。
精度高： NBIO-21CU 采用高精度 AD/DA 转换器，可确保输入输出数据的准确性。
通道数量多：NBIO-21CU 提供 20 个输入通道和 20 个输出通道，可满足多种应用需求。
隔离性好：NBIO-21CU 提供通道间隔离和电源隔离，可防止干扰和故障。
易于使用：NBIO-21CU 提供直观的界面和简单的配置，易于使用。
可靠性高：NBIO-21CU 采用工业级元件和设计，具有出色的可靠性。
规格

输入类型：
模拟量输入：12 个，分辨率 16 位，测量范围 -10 V 至 +10 V
数字量输入：8 个，电平 24 V DC
输出类型：
模拟量输出：8 个，分辨率 16 位，输出范围 -10 V 至 +10 V
数字量输出：12 个，电平 24 V DC
脉冲输出：4 个，频率zui高 100 kHz
隔离性：
通道间隔离：2500 V
电源隔离：2500 V
通信接口：EtherCAT的
电源： 24 V DC
尺寸： 120 mm x 60 mm x 25 mm
工作温度： -20 至 60 °C
储存温度： -40 至 85 °C
相对湿度： 5% 至 95% （非冷凝）
防护等级：IP67防护等级

NBIO-21CU  3BSE017427R1 输入输出模块

summarize

The NBIO-21CU 3BSE017427R1 is a powerful input/output module for connecting various sensors and actuators. It was developed and manufactured by Beckhoff Automation GmbH & Co. KG with part number 3BSE017427R1. NBIO-21CU has the following characteristics:

Versatility: The NBIO-21CU supports a variety of input and output types, including analog input, analog output, digital input, digital output and pulse output.
High accuracy: The NBIO-21CU uses a high-precision AD/DA converter to ensure the accuracy of input and output data.
Large number of channels: The NBIO-21CU offers 20 input channels and 20 output channels to meet a variety of application requirements.
Good isolation: The NBIO-21CU provides inter-channel isolation and power isolation to prevent interference and failure.
Easy to use: The NBIO-21CU offers an intuitive interface and simple configuration that makes it easy to use.
High reliability: The NBIO-21CU features industrial grade components and design for excellent reliability.
specification

Input type:
Analog input: 12, resolution 16 bits, measuring range -10 V to +10 V
Digital input: 8, level 24 V DC
Output type:
Analog output: 8, 16-bit resolution, output range -10 V to +10 V
Digital output: 12, level 24 V DC
Pulse output: 4, frequency up to 100 kHz
Isolation:
Channel isolation: 2500 V
Power isolation: 2500 V
Communication interface: EtherCAT
Power Supply: 24 V DC
Dimensions: 120 mm x 60 mm x 25 mm
Operating temperature: -20 to 60 °C
Storage temperature: -40 to 85 °C
Relative humidity: 5% to 95% (non-condensing)
Protection level: IP67 protection level
