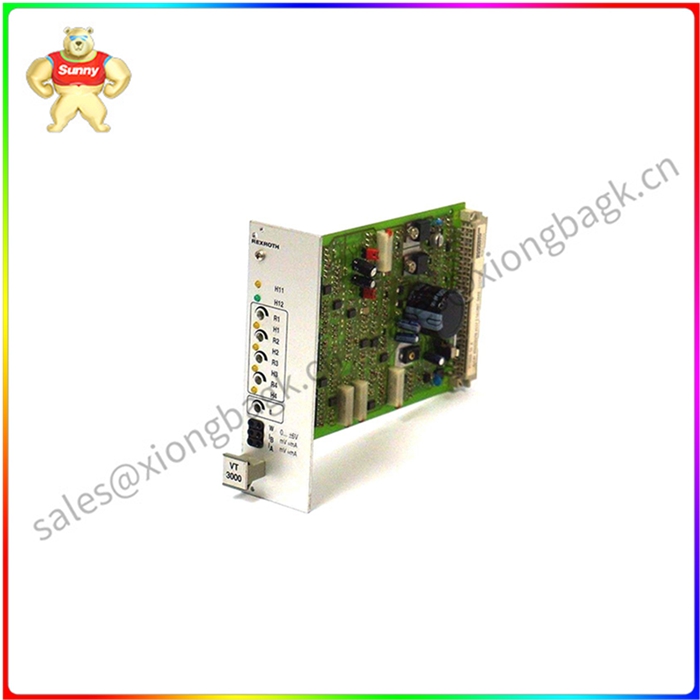

VT3000-3X 比例阀放大器

VT3000-3X 比例阀放大器

VT3000-3X 的主要特性

比例控制：将输入电压信号精 确地转换为成比例的输出电流，允许精 确控制液压阀流量。

斜坡时间生成：将阀门从一个位置平稳过渡到另一个位置，zui大限度地减少液压系统中的冲击和振动。

抖动功能：介绍一个小的，高频振荡进入输出电流，减少摩擦，改善阀门响应。

宽工作电压：在 24 VDC ± 10% 的范围内运行，确保与各种电源配置兼容。

紧凑型设计：采用紧凑的 Eurocard 格式，可节省控制面板或机柜中的安装空间。

VT3000-3X的应用

VT3000-3X 比例阀放大器通常用于需要精 确和可控运动的各种液压应用，包括：

机床：控制轴的运动，主轴和机床中的其他部件，如铣床，车床和CNC（计算机数控）机床。

机器人：在工业自动化和制造过程中控制机械臂和机械手的运动。

物料搬运设备：控制输送机的运动，升降机和其他物料搬运设备。

汽车系统：控制动力转向系统的运行，悬架系统，以及车辆中的其他液压元件。

航空航天和国防系统：控制飞行控制系统中执行器的运动，起落架系统，以及飞机和航天器中的其他液压系统。

使用 VT3000-3X 的优势

VT3000-3X 比例阀放大器为液压系统提供了几个优点：

精 确控制：能够精 确地控制液压阀流量，从而提高系统性能和可重复性。

运行平稳：zui大限度地减少液压系统中的冲击和振动，减少组件磨损，提高整体系统稳定性。

减少摩擦：引入抖动以减少阀门中的摩擦，提高效率和响应能力。

多面性：与各种液压阀和电源配置兼容。

紧凑型设计：节省控制面板和机柜的空间。

VT3000-3X 比例阀放大器

Main features of VT3000-3X

Proportional control: The input voltage signal is precisely converted into a proportional output current, allowing precise control of the hydraulic valve flow rate.

Ramp time generation: Smooth transition of valves from one position to another, minimizing shock and vibration in the hydraulic system.

Jitter function: Introduce a small, high-frequency oscillation into the output current to reduce friction and improve valve response.

Wide operating voltage: operates in the range of 24 VDC ± 10%, ensuring compatibility with various power supply configurations.

Compact design: The compact Eurocard format saves installation space in the control panel or cabinet.

Application of VT3000-3X

VT3000-3X proportional valve amplifiers are commonly used in a variety of hydraulic applications that require precise and controlled motion, including:

Machine tools: Control the movement of axes, spindles and other components in machine tools such as milling machines, lathes and CNC (computer numerical control) machines.

Robots: Control the movement of robotic arms and manipulators in industrial automation and manufacturing processes.

Material handling equipment: Controls the movement of conveyors, lifts and other material handling equipment.

Automotive systems: Controls the operation of the power steering system, the suspension system, and other hydraulic components in the vehicle.

Aerospace and Defense Systems: Controls the movement of actuators in flight control systems, landing gear systems, and other hydraulic systems in aircraft and spacecraft.

Advantages of using the VT3000-3X

The VT3000-3X proportional valve amplifier provides several advantages for hydraulic systems:

Precise control: The hydraulic valve flow rate can be precisely controlled to improve system performance and repeatability.

Smooth operation: Minimize shock and vibration in the hydraulic system, reduce component wear, and improve overall system stability.

Reduce friction: jitter is introduced to reduce friction in the valve and improve efficiency and responsiveness.

Multifaceted: Compatible with various hydraulic valve and power supply configurations.

Compact design: Save control panel and cabinet space.
