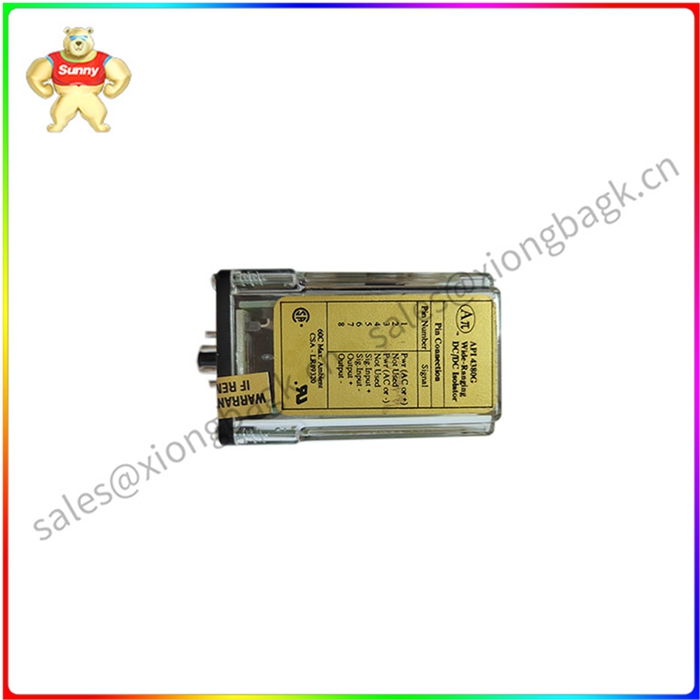

API4380-G 直流至直流变送器

API4380-G 直流至直流变送器

主要特点：

宽输入和输出范围：API 4380 G 可接受各种直流电压和电流输入，包括 0-50 mV 至 0-10 V，+/- 50 mV 至 +/- 10 V，和 0-1 mA 至 20 mA。它提供同样多样化的直流电压和电流输出，实现灵活的信号转换。

现场可配置：模块的输入和输出范围可通过外部旋转和滑动开关进行现场配置。允许用户自定义变送器的操作，以满足特定的应用要求。

全 3 端隔离：输出和电源，确保信号完整性并消除接地环路问题。API 4380 G 在输入、这种隔离可保护模块免受电气噪声和干扰的影响，确保在恶劣的工业环境中可靠运行。

环路电源：该模块提供内置 18 VDC 非稳压环路励磁电源，能够为无源输入设备（如热电偶和RTD）供电。

LoopTracker® LED 指示灯：API 4380 G 包含两个 LoopTracker® LED，一个用于输入，一个用于输出。这些 LED 的强度随过程输入和输出信号的变化而变化，提供信号电平的视觉指示，以便快速排除故障。

功能测试按钮：功能测试按钮允许用户手动启动固定的输出电平，与输入信号无关。 此功能有助于验证变送器的运行情况和执行校准程序。

应用：

API 4380 G DC-DC隔离式变送器应用广泛，包括：

信号隔离：在系统的不同部分之间隔离信号，以消除接地环路并防止噪声干扰。

信号转换：将信号从一个范围或格式转换为另一个范围或格式，例如将热电偶电压转换为标准的 4-20 mA 电流信号。

信号放大：将微弱信号放大到可用水平，以便进行监测或控制。

过程监控：监控各种工艺参数，如温度，压力流和水平，在工业厂房和机械中。

数据采集系统：从工业自动化和控制系统的传感器和传感器采集和处理数据。

API4380-G 直流至直流变送器

Main features:

Wide input and output range: The API 4380 G accepts a wide range of DC voltage and current inputs, including 0-50 mV to 0-10 V, +/ -50 mV to +/ -10 V, and 0-1 mA to 20 mA. It offers equally diverse DC voltage and current outputs for flexible signal conversion.

Field configurable: The input and output ranges of the module can be field configured with external rotary and slide switches. Allows users to customize the operation of the transmitter to meet specific application requirements.

Full 3-terminal isolation: output and power supply to ensure signal integrity and eliminate ground loop problems. API 4380 G at the input, this isolation protects the module from electrical noise and interference, ensuring reliable operation in harsh industrial environments.

Loop Power Supply: This module provides a built-in 18 VDC unregulated loop excitation power supply capable of powering passive input devices such as thermocouples and RTDS.

LoopTracker® LED indicator: API 4380 G contains two LoopTracker® leds, one for input and one for output. The strength of these leds varies with changes in process input and output signals, providing a visual indication of signal levels for quick troubleshooting.

Functional test button: The functional test button allows the user to manually start a fixed output level, independent of the input signal. This function helps verify the operation of the transmitter and perform calibration procedures.

Applications:

API 4380 G DC-DC isolated transmitters are used in a wide range of applications, including:

Signal isolation: Isolating signals between different parts of the system to eliminate ground loops and prevent noise interference.

Signal conversion: Converting a signal from one range or format to another, such as converting a thermocouple voltage to a standard 4-20 mA current signal.

Signal amplification: Amplification of weak signals to usable levels for monitoring or control.

Process monitoring: Monitoring various process parameters, such as temperature, pressure flow and level, in industrial plants and machinery.

Data acquisition systems: Collect and process data from sensors and sensors in industrial automation and control systems.
