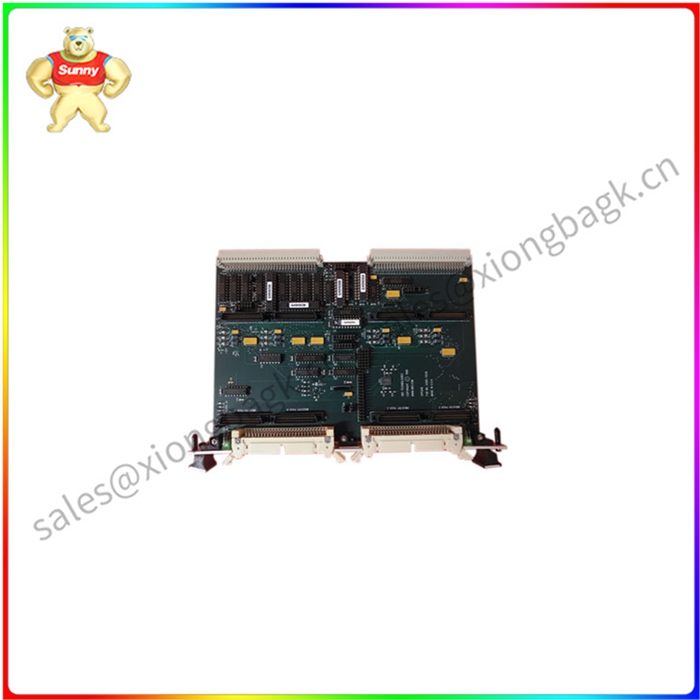

VIPC616 91611524 4插槽6U VME IndustryPack托架

VIPC616 91611524 4插槽6U VME IndustryPack托架

VME-IP 运营商VIPC616 91611524是 SBS 制造的 4 插槽 6U VME IndustryPack 载板。它旨在提供一个坚固而灵活的平台，用于将 IndustryPack 模块集成到基于 VME 的系统中。载板具有几个关键特性，使其适用于各种工业应用。

VME-IP-CARRIER VIPC616 91611524的主要特性：

4 个 IndustryPack 插槽：zui多可容纳 4 个 IndustryPack 模块，扩展了 VME 系统的功能。

6U VME 外形尺寸：兼容标准 6U VME 背板，确保轻松集成到现有的 VME 系统中。

I/O、ID、存储器和中断支持：支持 I/O、ID，记忆以及 IndustryPack 模块的中断周期，提供全面的通信能力。

前面板 I/O：为每个 IndustryPack 模块提供前面板 I/O 访问，可轻松连接到外部设备。

LED 状态指示灯：为每个 IndustryPack 插槽和电源提供 LED 状态指示灯，提供视觉状态信息。

电源滤波和熔断：集成了电源滤波和熔断功能，可保护载板和 IndustryPack 模块免受电涌和瞬变的影响。

基于 PLD 的 IRQ 映射：利用 PLD（可编程逻辑器件）实现灵活的 IRQ 映射，允许自定义中断分配。

VME-IP-CARRIER VIPC616 91611524的应用：

工业控制系统：用于工业控制系统，集成各种I/O，通信以及使用 IndustryPack 模块的信号处理功能。

数据采集系统：用于数据采集系统，使用 IndustryPack 模块从传感器和传感器收集和处理数据。

测试和测量系统：用于测试和测量系统以执行信号调理，数据分析并使用 IndustryPack 模块控制任务。

机器控制和自动化：用于机器控制和自动化应用，以集成运动控制，视觉系统，以及使用 IndustryPack 模块的其他功能。

电信系统：用于电信系统提供信号处理，数据传输以及使用 IndustryPack 模块的网络管理功能。

总体而言，VME-IP-CARRIER VIPC616 91611524被证明是一种多功能且可靠的解决方案，可扩展 VME 系统在各种工业应用中的功能。

VIPC616 91611524 4插槽6U VME IndustryPack托架

Vme-ip operator VIPC616 91611524 is a 4-slot 6U VME IndustryPack carrier made by SBS. It is designed to provide a robust and flexible platform for integrating IndustryPack modules into VME-based systems. The carrier board has several key characteristics that make it suitable for a variety of industrial applications.

Main features of VME-IP-CARRIER VIPC616 91611524:

4 IndustryPack slots: Up to 4 IndustryPack modules can be accommodated to expand the functionality of the VME system.

6U VME Form Factor: Compatible with standard 6U VME backplanes, ensuring easy integration into existing VME systems.

I/O, ID, memory and Interrupt support: Supports interrupt cycles for I/O, ID, memory and IndustryPack modules to provide comprehensive communication capabilities.

Front panel I/O: Provides front panel I/O access for each IndustryPack module for easy connection to external devices.

LED status indicator: Provide LED status indicator for each IndustryPack slot and power supply to provide visual status information.

Power filter and fuse: Integrated power filter and fuse function to protect carrier board and IndustryPack modules from power surges and transients.

Pld-based IRQ Mapping: Flexible IRQ mapping using PLDS (programmable logic devices), allowing custom interrupt allocation.

Application of VME-IP-CARRIER VIPC616 91611524:

Industrial control systems: For industrial control systems, integrating various I/O, communication and signal processing functions using IndustryPack modules.

Data acquisition system: For data acquisition systems, the IndustryPack module is used to collect and process data from sensors and sensors.

Test and measurement systems: Used to test and measure systems to perform signal conditioning, data analysis and control tasks using IndustryPack modules.

Machine Control and automation: For machine control and automation applications to integrate motion control, vision systems, and other functions using IndustryPack modules.

Telecommunication systems: Used in telecommunication systems to provide signal processing, data transmission and network management functions using the IndustryPack module.

Overall, the VME-IP-Carrier VIPC616 91611524 is proving to be a versatile and reliable solution that extends the functionality of VME systems in a variety of industrial applications.
