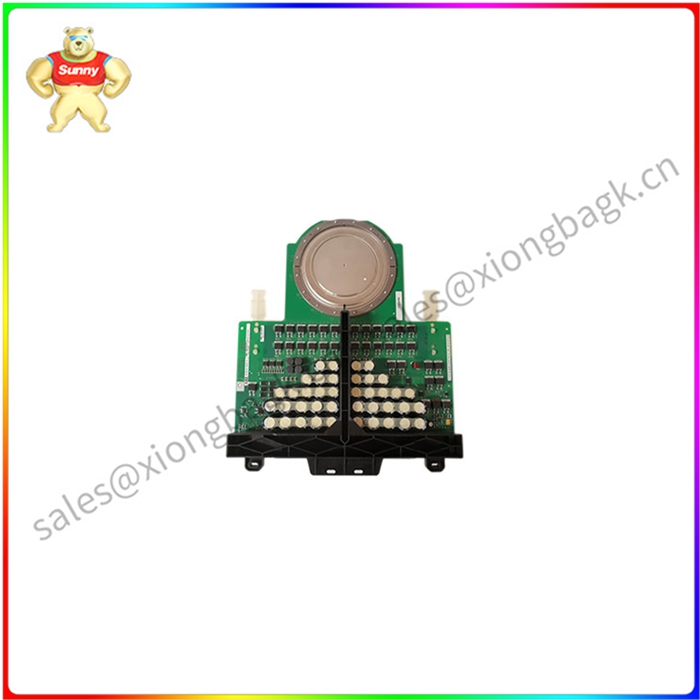

5SHX2645L0004 3BHL000389P0104 5SHX系列可控硅

5SHX2645L0004 3BHL000389P0104 5SHX系列可控硅

5SHX2645L0004 3BHL000389P0104是ABB的集成栅极换向晶闸管（IGCT），属于5SHX系列。 它专为各种工业环境中的大功率开关应用而设计，如电机驱动，电源转换器，和可再生能源系统。

5SHX2645L0004 3BHL000389P0104 IGCT的主要特点：

高额定电压和电流：支持高达 2600V 的额定电压和高达 4500A 的连续额定电流，实现大功率负载的高效切换。

快速开关速度：提供快速开关速度，导通时间小于 1。5 μs，关断时间小于 2。5 μs，允许精 确控制高频开关应用。

低开关损耗：具有低开关损耗，zui大限度地降低功耗，提高能源效率。

高可靠性：具有高可靠性，平均故障间隔时间（MTBF）超过100,000小时，确保长期运行。

反向导电能力：支持反向导电能力，实现双向电流流动。

栅极驱动兼容性：与标准栅极驱动电路兼容，简化与现有控制系统的集成。

5SHX2645L0004 3BHL000389P0104 IGCT的应用：

电机驱动：用于交流电机的电机驱动，提供对电机转速和扭矩的有效控制。

电源转换器：用于高压直流 （HVDC） 传输的电源转换器，可再生能源系统，和并网应用。

工业自动化：用于工业自动化应用中的功率控制，开关以及各种机械设备的保护。

铁路牵引系统：用于铁路牵引系统，用于控制牵引电机的速度和扭矩。

不间断电源 （UPS）：用于不间断电源（UPS），用于提供备用电源并确保停电期间的连续运行。

总体而言，5SHX2645L0004 3BHL000389P0104 IGCT是各种工业和能源相关领域大功率开关应用的高性能和可靠解决方案。

5SHX2645L0004 3BHL000389P0104 5SHX系列可控硅

The 5SHX2645L0004 3BHL000389P0104 is ABB's integrated gate commutator thyristor (IGCT), part of the 5SHX series. It is designed for high-power switching applications in a variety of industrial environments, such as motor drives, power converters, and renewable energy systems.

5SHX2645L0004 3BHL000389P0104 Main features of IGCT:

High rated voltage and current: Supports rated voltage up to 2600V and continuous rated current up to 4500A for efficient switching of high-power loads.

Fast switching speed: Provides fast switching speed, turn-on time is less than 1. 5 μs, turn-off time less than 2. 5 μs, allowing precise control of high frequency switching applications.

Low switching loss: With low switching loss, minimize power consumption and improve energy efficiency.

High reliability: With high reliability, the mean time between failures (MTBF) exceeds 100,000 hours, ensuring long-term operation.

Reverse conductivity: Support reverse conductivity to achieve two-way current flow.

Grid drive compatibility: Compatible with standard grid drive circuits, simplifies integration with existing control systems.

5SHX2645L0004 3BHL000389P0104 IGCT Application:

Motor drive: A motor drive for AC motors that provides effective control of motor speed and torque.

Power converters: Power converters for high-voltage direct current (HVDC) transmission, renewable energy systems, and grid-connected applications.

Industrial automation: For power control, switching and protection of various mechanical equipment in industrial automation applications.

Railway traction systems: Used in railway traction systems to control the speed and torque of traction motors.

Uninterruptible power supply (UPS) : Used for uninterruptible power supply (UPS) to provide backup power and ensure continuous operation during power outages.

Overall, the 5SHX2645L0004 3BHL000389P0104 IGCT is a high-performance and reliable solution for high-power switching applications in a variety of industrial and energy-related fields.
