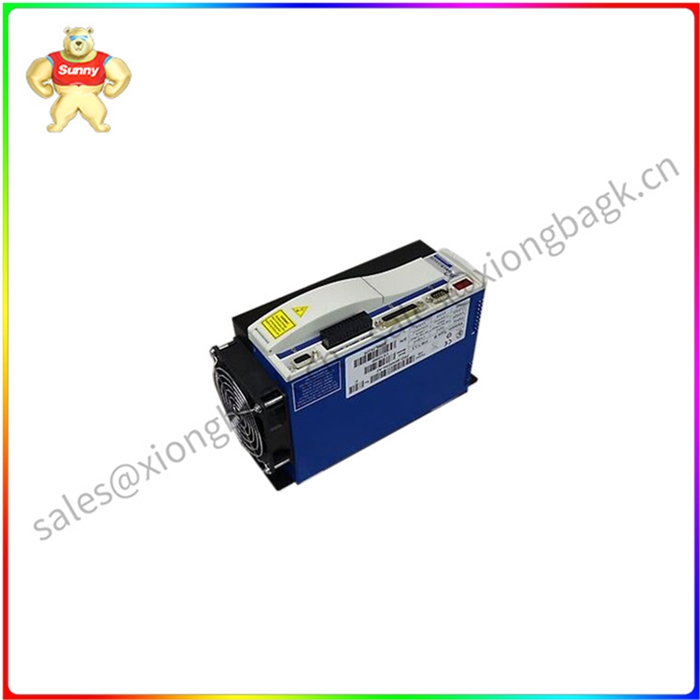

CE10560 KOLLMORGEN 伺服驱动器

CE10560 KOLLMORGEN 伺服驱动器

CE10560是一种用来控制伺服电机的控制器，属于伺服系统的一部分。伺服驱动器的作用类似于变频器对于普通交流马达的作用，主要应用于高精度的定位系统。伺服驱动器通过控制电机的电流和电压，实现对电机轴的扭矩、速度和位置的高精度控制。

CE10560是现代运动控制的重要组成部分，被广泛应用于工业机器人、数控加工中心等自动化设备中。伺服驱动器具有多种特点，如高速响应、高精度、高可靠性、低速大转矩、过载能力强等。

CE10560的基本构成包括电路板、微芯片、电线和连接器。伺服驱动器与电机连接，通过控制和引导电机电线的电流来实现对电机的控制。伺服驱动器通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位。

CE10560的工作原理基于旋转磁效应。其中一个组件具有传统的磁铁，而另一个组件具有绕组或“电磁铁”。通过使电流通过绕组，可以产生磁场，与磁铁的磁场相互作用，从而产生旋转力矩，使电机旋转。伺服驱动器通过调整提供的电流和电压来控制电机的旋转速度、位置和力矩。

CE10560的设计通常采用基于矢量控制的电流、速度、位置3闭环控制算法。速度闭环设计在伺服控制系统中起到关键作用，电机转子实时速度测量精度对于改善速度环的转速控制动静态特性至关重要。伺服驱动器通常具有数分钟甚至半小时内1.5倍以上的过载能力，在短时间内可以过载4～6倍而不损坏。

CE10560具有高可靠性，适用于各种环境和使用场景。伺服驱动器要求电机在从zui低速到zui高速范围内都能平稳运转，转矩波动要小，尤其在低速时仍能保持平稳的速度而无爬行现象。

总的来说，CE10560是一种重要的运动控制设备，通过精 确控制电机的电流和电压，实现对电机的高精度控制，广泛应用于工业自动化、机器人、数控机床等领域。伺服驱动器的发展和创新不断提高着运动控制的精度和性能，推动着工业自动化技术的不断进步。

CE10560 KOLLMORGEN 伺服驱动器

CE10560 is a controller used to control servo motors, which is part of the servo system. The role of the servo driver is similar to that of the frequency converter for the ordinary AC motor, which is mainly used in high-precision positioning systems. By controlling the current and voltage of the motor, the servo driver can control the torque, speed and position of the motor shaft with high precision.

CE10560 is an important part of modern motion control, which is widely used in industrial robots, CNC machining centers and other automation equipment. Servo drive has many characteristics, such as high-speed response, high precision, high reliability, low speed, high torque, strong overload capacity.

The basic components of the CE10560 include a circuit board, microchip, wires and connectors. The servo driver is connected to the motor to control the motor by controlling and directing the current of the motor wires. The servo drive can control the servo motor by three ways: position, speed and torque, and realize high-precision positioning of the transmission system.

The CE10560 works on the basis of the rotating magnetic effect. One of the components has a conventional magnet, while the other has a winding or "electromagnet." By passing an electric current through the winding, a magnetic field can be generated, which interacts with the magnetic field of the magnet, resulting in a rotating torque that causes the motor to rotate. The servo driver controls the rotation speed, position and torque of the motor by adjusting the supplied current and voltage.

The design of CE10560 usually adopts the current, speed, position 3 closed-loop control algorithm based on vector control. Speed closed-loop design plays a key role in servo control system, and the real-time speed measurement accuracy of motor rotor is very important to improve the dynamic and static characteristics of speed control of speed loop. Servo drives usually have an overload capacity of more than 1.5 times in a few minutes or even half an hour, and can be overloaded 4 to 6 times in a short period of time without damage.

The CE10560 has high reliability and is suitable for a variety of environments and usage scenarios. Servo drives require the motor to operate smoothly from the lowest speed to the highest speed range, with small torque fluctuations, especially at low speeds, but still able to maintain a stable speed without crawling.

In general, CE10560 is an important motion control equipment, by precisely controlling the current and voltage of the motor, to achieve high-precision control of the motor, widely used in industrial automation, robotics, CNC machine tools and other fields. The development and innovation of servo drivers continue to improve the accuracy and performance of motion control, and promote the continuous progress of industrial automation technology.

CE10560 KOLLMORGEN 伺服驱动器
