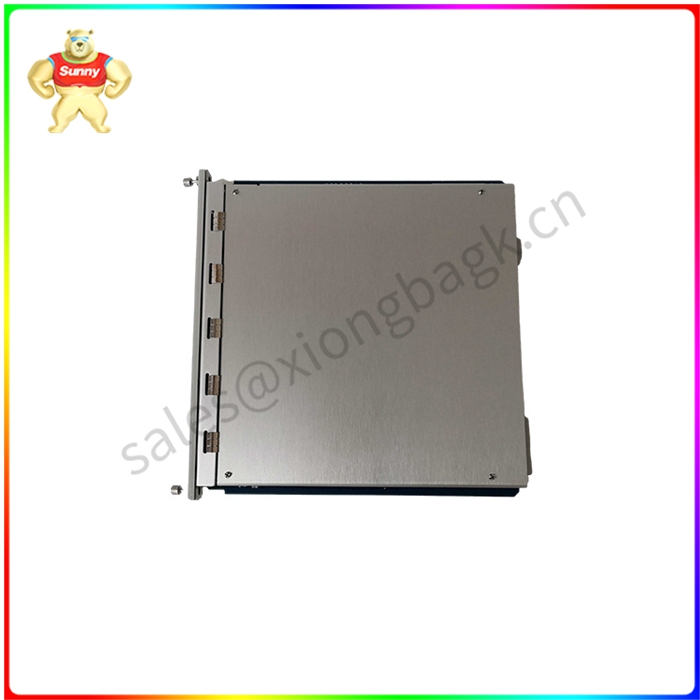

3500/92 136188-01 通信网关模块

3500/92 136188-01 通信网关模块

3500/92 136188-01 通信网关模块是本特利内华达制造的工业通信模块。它设计用于与 Bently Nevada 的 3500 系列机械保护系统结合使用，提供广泛的通信功能，将机械数据与过程控制和其他自动化系统集成。

3500/92 136188-01 通信网关模块的主要特性：

广泛的通信协议：支持以太网 TCP/IP 和串行 （RS232/RS422/RS485） 通信协议，实现与各种工业控制系统的无缝集成。

实时数据访问：提供对所有机架监控值和状态的实时访问，包括振动数据，报警条件，和系统诊断。

以太网配置和数据采集：支持与 Bently Nevada 的 3500 机架配置软件和数据采集软件进行以太网通信，以进行远程配置和数据检索。

可配置的 Modbus 寄存器实用程序：提供可配置的 Modbus 寄存器实用程序，用于将机架监控的值和状态映射到 Modbus 寄存器，促进与基于Modbus的系统的集成。

3500/92 136188-01通信网关模块的应用：

过程控制集成：将机械数据集成到过程控制系统中，以实时监测和控制机器的运行状况和性能。

数据采集和监控：收集和存储机械数据以进行历史分析，趋势监测，和预测性维护。

远程监控和诊断：支持从控制室或异地位置远程监控机器的运行状况和性能。

告警通知和管理：将机械报警与全厂报警系统集成，以便及时通知和响应事件。

总体而言，3500/92 136188-01 通信网关模块是增强 Bently Nevada 3500 系列机械保护系统的连接性和数据可访问性的宝贵工具，可实现与过程控制、监控和维护系统的有效集成。

3500/92 136188-01 通信网关模块

The 3500/92 136188-01 Communication Gateway module is an industrial communication module manufactured by Bentley Nevada. Designed to be used in conjunction with Bently Nevada's 3500 series mechanical protection systems, it provides a wide range of communication capabilities that integrate mechanical data with process control and other automation systems.

3500/92 136188-01 Main features of the communication gateway module:

A wide range of communication protocols: Support Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols to achieve seamless integration with various industrial control systems.

Real-time data access: Provides real-time access to all rack monitoring values and status, including vibration data, alarm conditions, and system diagnostics.

Ethernet Configuration and data acquisition: Supports Ethernet communication with Bently Nevada's 3500 rack configuration software and data acquisition software for remote configuration and data retrieval.

Configurable Modbus Register utility: Provides a configurable Modbus register utility for mapping rate-monitored values and states to Modbus registers, facilitating integration with Modbus-based systems.

3500/92 136188-01 Application of communication gateway module:

Process Control Integration: The integration of mechanical data into process control systems to monitor and control machine health and performance in real time.

Data acquisition and Monitoring: Collect and store mechanical data for historical analysis, trend monitoring, and predictive maintenance.

Remote monitoring and diagnostics: Support remote monitoring of machine health and performance from the control room or remote location.

Alarm notification and management: Mechanical alarms are integrated with a plant-wide alarm system for timely notification and response to incidents.

Overall, the 3500/92 136188-01 Communication Gateway module is a valuable tool for enhancing the connectivity and data accessibility of Bently Nevada 3500 Series mechanical protection systems, enabling effective integration with process control, monitoring and maintenance systems.

3500/92 136188-01 通信网关模块
