2098-DSD-030-SEB 一款带有 SERCOS 接口的 Ultra 3000 驱动模块

2098-DSD-030-SEB 一款带有 SERCOS 接口的 Ultra 3000 驱动模块
制造者    罗克韦尔自动化
输入频率 （AC）    47 至 63 赫兹
分流关闭    402 伏直流电
品牌    艾伦-布拉德利
零件编号/目录号    编号：2098-DSD-030-SE
输出电流（连续）    15 安培（0 峰值）
输出电流（间歇）    30 安培（0 峰值）
额定输入电流 （AC）    28 安培 RMS

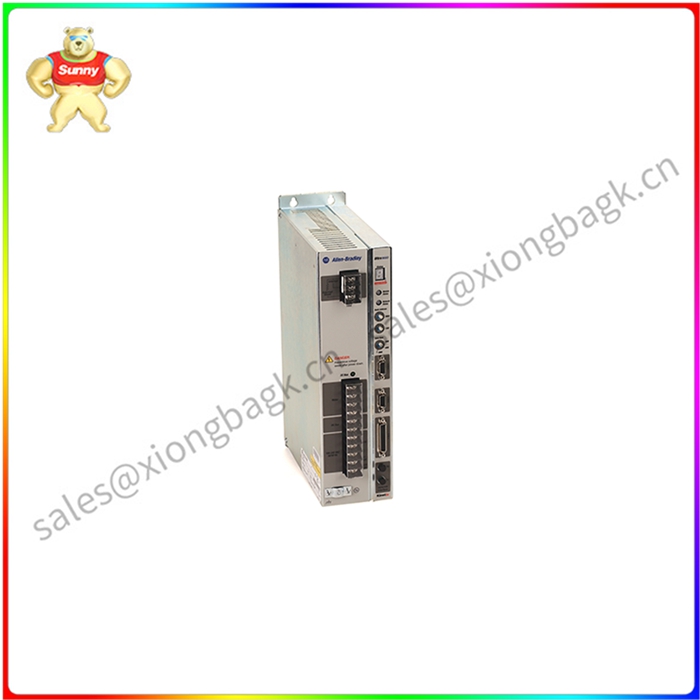

Allen-Bradley 2098-DSD-030-SE 是一款集成支持串行实时通信系统 （SERCOS） 的 Ultra 3000 驱动器。该驱动器是 2098 数字伺服驱动器产品系列的一部分。该驱动器由 100-240VAC 的外部电源电压供电，1 相，频率为 47-63 Hz。它的标称输入电流为 28 安培，zui大浪涌为 230VAC （0-pk） 时为 50 安培。

2098-DSD-030-SE 的辅助交流输入电流为 1.0 A，适用于 115V 交流 （rms） 标称值;0.5 A（230V 交流 （rms） 标称值;47 A 用于 115VAC （0-pk） zui大浪涌，95 A 用于 230V 交流 （0-pk） zui大浪涌。它具有 35 欧姆的内部分流电阻和 452VDC 的总线过压。

此 Ultra 3000 变频器配有各种连接器和旋转开关，用于设置该变频器的操作。它具有 CN1 连接器，这是一个 44 针接口，用于 I/O 接口;CN2 连接器是用于电机反馈连接器的 15 针接口和用于串行通信的 CN3 连接器。模块前面板还安装了三 （3） 个旋转开关，其中两 （2） 个开关用于设置节点地址，一 （1） 个开关用于配置驱动器的数据速率。该驱动器还具有模块状态 LED，用于报告驱动器模块的整体状态，以及用于描述设备通信活动的网络状态 LED。它还具有七段式显示屏，可显示与模块当前运行状态相关的代码以及位于驱动模块底部的 SERCOS 接口。

2098-DSD-030-SE 驱动器中使用的 SERCOS 光缆不受外部噪音/振动的影响，这使其成为出色的绝缘体。7 段显示终端提供有关当前过程的信息。增强的控制有助于实现 Ultra3000 驱动系统的独立功能。现场可编程存储器有助于某些操作，这些操作需要启用存储器的指令才能与远程设备连接。在断电的情况下，2098-DSD-030-SE 可以选择提供外部逻辑电源以保持其位置。

Allen-Bradley 2098-DSD-030-SE 是一款强大的驱动器，输入电压为 100 至 240 伏交流均方根（单相），输入频率为 47 至 63 赫兹，标称输入电流为 28 安培均方根。它还具有 15 安培（0 峰值）连续输出电流和 30 安培（0 峰值）间歇输出电流，均包含在其方便的尺寸 14.2 x 9.6 x 3.6 英寸中。

2098-DSD-030-SEB 一款带有 SERCOS 接口的 Ultra 3000 驱动模块

Manufacturer Rockwell Automation
Input frequency (AC) 47 to 63 Hz
Shunt off 402 volts DC
Brand Allen Bradley
Part Number/Catalog Number: 2098-DSD-030-SE
Output current (continuous) 15 amps (0 peak)
Output current (intermittent) 30 amps (0 peak)
Rated input current (AC) 28 amps RMS
Allen-Bradley 2098-DSD-030-SE is an Ultra 3000 driver with integrated support for Serial Real-time Communication System (SERCOS). The drive is part of the 2098 digital servo drive product family. The driver is powered by an external supply voltage of 100-240VAC, 1 phase, and the frequency is 47-63 Hz. It has a nominal input current of 28 amps and a maximum surge of 50 amps at 230VAC (0-pk).

The 2098-DSD-030-SE has an auxiliary AC input current of 1.0 A, suitable for 115V AC (rms) nominal values; 0.5A (230V AC (rms) nominal value; 47 A for 115VAC (0-pk) maximum surge, 95 A for 230V AC (0-pk) maximum surge. It has an internal shunt resistance of 35 ohms and a bus overvoltage of 452VDC.

This Ultra 3000 inverter is equipped with various connectors and rotary switches for setting up the operation of this inverter. It has a CN1 connector, which is a 44-pin interface for the I/O interface; The CN2 connector is a 15-pin interface for the motor feedback connector and a CN3 connector for serial communication. Three (3) rotary switches are also installed on the front panel of the module, of which two (2) switches are used to set the node address and one (1) switch is used to configure the data rate of the driver. The driver also has a module status LED for reporting the overall status of the driver module, and a network status LED for describing device communication activity. It also has a seven-segment display that shows the code related to the current operating state of the module and the SERCOS interface located at the bottom of the driver module.

The SERCOS cable used in the 2098-DSD-030-SE driver is not affected by external noise/vibration, which makes it an excellent insulator. The 7-segment display terminal provides information about the current process. Enhanced control facilitates the independent functionality of the Ultra3000 drive system. Field programmable memory facilitates certain operations that require memory-enabled instructions to connect to remote devices. In case of power failure, the 2098-DSD-030-SE has the option to provide external logic power to maintain its position.

Allen-Bradley 2098-DSD-030-SE is a powerful driver with input voltages of 100 to 240 volts AC RMS (single phase), input frequencies of 47 to 63 Hz, and a nominal input current of 28 amps RMS. It also features 15 amps (0 peak) continuous output current and 30 amps (0 peak) intermittent output current, both contained in its convenient size of 14.2 x 9.6 x 3.6 inches.
