5069-OF8 紧凑型5000 I/O

5069-OF8 紧凑型5000 I/O
zui大MOD功率通过    9.55安@ 18…32伏DC
开路检测    仅当前模式
解决    16位10.5V-320V/位16位10.5V-160V/位16位5.25V-80V/位16位21mA-320 nA/位
每个通道的转换时间    25岁
转化法    r梯形DAC，单调性，无失码
输出电流信号    0-20毫安和4-20毫安
输出电压信号    10伏直流电；0-10伏直流电；0-5伏直流电
输入数量    八(8)个通道
系列    紧凑型5000 I/O
数据格式    IEEE 32位浮点
模拟输出额定值    +/–10V DC，每通道0…20毫安
MOD功率    75毫安@ 18…32伏DC
SA电源    18…32V DC时为250毫安
制造商    罗克韦尔自动化
品牌    艾伦-布拉德利

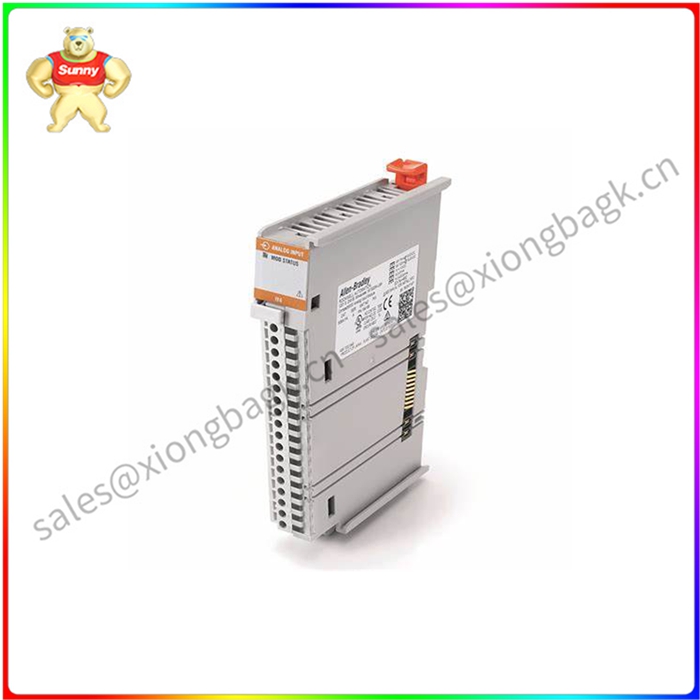

艾伦-布拉德利5069-OF8是一个紧凑的5000模拟输出模块。该模块与作为本地和分布式I/O模块的CompactLogix 5000控制器兼容使用，仅与作为分布式I/O模块的ControlLogix控制器兼容使用。

5069-OF8配有八(8)个模拟输出通道。每个通道都可以配置电压和电流输出信号。输出信号包括电压的10VDC、0-10VDC和0-5VDC以及电流信号的0-20 mA和4-20 mA。它在10.5V-320V/位范围内具有16位分辨率；16位，10.5V-160V/位；16位跨5.25V-80V/位，16位跨21mA-320 nA/位。该模块能够在电流模式下检测开路，在电压模式下检测短路。该模块通过内置的R-梯形数模转换器(DAC)将数字数据转换回模拟数据，用于实际过程，单调性，无摩辛码。该模块每个输出通道的转换时间为25 s，通道0-3的扫描时间为1.0 ms，通道4-7的扫描时间为2.0 ms。

5069-OF8可用于驱动和执行调节装置，如阀门、变频驱动器(VFD)、阻尼器和其他执行机构。它还可用于将信号转发给面板仪表、数据记录器和记录器等接收元件。该模块也可以与伙伴控制器的比例+积分+微分(PID)控制器连接，以实现模拟控制回路的手动和全自动控制。

5069-OF8 紧凑型5000 I/O

Maximum MOD power by 9.55am@18... 32 Volt DC
Open detection is only the current mode
Solution: 16-bit 10.5V-320V/ 16-bit 10.5V-160V/ 16-bit 5.25V-80V/ 16-bit 21 MA-320 nA/ bit
The conversion time for each channel is 25 years
Conversion method r ladder DAC, monotonicity, no loss of code
Output current signals 0-20 MA and 4-20 MA
Output voltage signal 10 v DC; 0-10 volts direct current; 0-5 volts direct current
Input number eight (8) channels
Series Compact 5000 I/O
Data format IEEE 32-bit floating point
Analog output rating +/ - 10V DC, 0... 20 ma
MOD Power 75 MA @ 18... 32 Volt DC
SA power 18... 250 MA at 32V DC
Manufacturer Rockwell Automation
Brand Allen Bradley
The Allen-Bradley 5069-OF8 is a compact 5000 analog output module. The module is compatible with the CompactLogix 5000 controller as a local and distributed I/O module, and only with the ControlLogix controller as a distributed I/O module.

The 5069-OF8 is equipped with eight (8) analog output channels. Each channel can be configured with voltage and current output signals. Output signals include 10VDC, 0-10VDC, and 0-5VDC for voltage and 0-20 mA and 4-20 mA for current signals. It has a 16-bit resolution in the 10.5V-320V/ bit range; 16-bit, 10.5V-160V/ bit; 16-bit span 5.25V-80V/ bit, 16-bit span 21mA-320 nA/ bit. The module can detect open circuit in current mode and short circuit in voltage mode. The module converts digital data back to analog data through the built-in R-ladder digital-to-analog converter (DAC) for practical processes, monotonicity, and no Mossin code. The conversion time of each output channel of the module is 25 s, the scanning time of channels 0-3 is 1.0 ms, and the scanning time of channels 4-7 is 2.0 ms.

The 5069-OF8 can be used to drive and execute regulating devices such as valves, variable frequency drives (VFDS), dampers and other actuators. It can also be used to forward signals to receiving components such as panel meters, data loggers and recorders. The module can also be connected with the proportional + integral + differential (PID) controller of the partner controller to enable manual and fully automatic control of the analog control loop.
