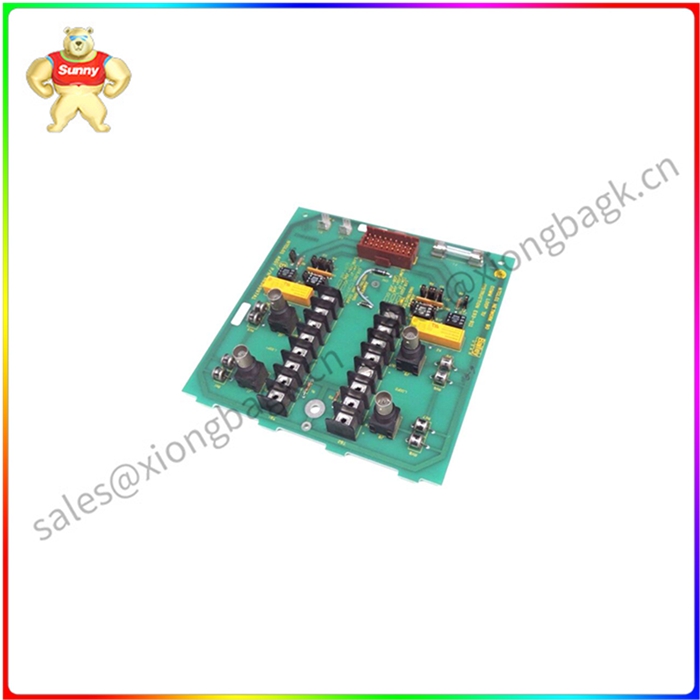

NTCL01 INFI-Net 通信链路 TU

NTCL01 INFI-Net 通信链路 TU

NTCL01 是一款 TU（传输单元），设计用于 INFI-Net（英语：INFI-Net）工业通信网络。它是由制造者ABB公司,领 先的电源和自动化技术提供商。NTCL01 可在网络节点之间实现可靠高效的数据传输，支持各种工业自动化应用。

主要特点：

高速数据传输：支持高达 10 Mbps 的高速数据传输速率，确保网络设备之间快速高效地交换信息。

确定性性能：提供具有保证延迟和抖动特性的确定性性能，对于工业自动化中的实时控制应用至关重要。

冗余环形拓扑：利用冗余环形拓扑实现高可用性和容错能力，即使在组件发生故障的情况下也能确保网络连续性。

即插即用安装：采用即插即用设计，易于安装和配置，zui大限度地减少停机时间并简化网络维护。

应用：

NTCL01 TU 可在各种工业自动化环境中应用，包括：

过程控制系统：实现过程控制系统中控制器、传感器和执行器之间的通信，确保精 确高效的过程操作。

制造自动化：促进制造自动化系统中的PLC、HMI设备和机器人之间的数据交换，优化生产流程和质量控制。

技术规格：

NTCL01 TU的详细技术规格可能无法公开，除非获得ABB的文档或与ABB直接联系。然而根据现有信息和类似TU的典型特征，可以推断出一些通用规格：

数据速率：高达 10 Mbps

传输距离：长达 20 公里（12.4英里）

媒体：光缆

拓扑学：冗余环形拓扑

工作温度：-40°C 至 70°C

NTCL01 INFI-Net 通信链路 TU

The NTCL01 is a TU (Transmission unit) designed for use in INFI-Net industrial communication networks. It is manufactured by ABB, a leading provider of power and automation technology. NTCL01 enables reliable and efficient data transfer between network nodes, supporting a wide range of industrial automation applications.

Main features:

High-speed data transfer: Supports high-speed data transfer rates of up to 10 Mbps, ensuring fast and efficient exchange of information between network devices.

Deterministic performance: Providing deterministic performance with guaranteed delay and jitter characteristics is critical for real-time control applications in industrial automation.

Redundant ring topology: Use redundant ring topology for high availability and fault tolerance, ensuring network continuity even in the event of component failure.

Plug and play installation: With a plug and play design, it is easy to install and configure, minimizing downtime and simplifying network maintenance.

Applications:

The NTCL01 TU can be used in a variety of industrial automation environments, including:

Process control system: The communication between controllers, sensors and actuators in the process control system ensures accurate and efficient process operation.

Manufacturing automation: Facilitate the exchange of data between PLC, HMI equipment and robots in manufacturing automation systems to optimize production processes and quality control.

Technical specifications:

Detailed technical specifications for the NTCL01 TU may not be available unless documented by ABB or contacted directly by ABB. However, based on the available information and typical characteristics similar to TU, some general specifications can be inferred:

Data rate: up to 10 Mbps

Transmission distance: up to 20 km (12.4 mi)

Media: Optical cable

Topology: Redundant ring topology

Operating temperature: -40°C to 70°C
