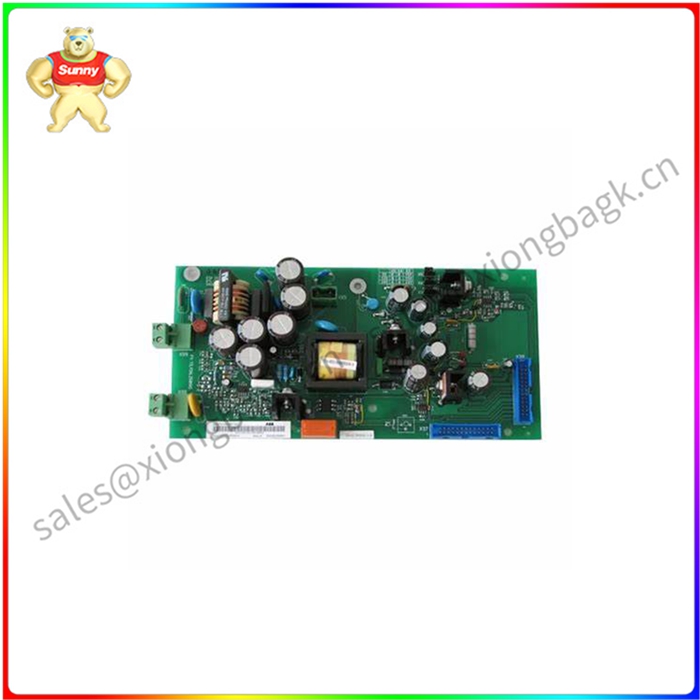

SDCS-PIN48-SD 脉冲变压器板

SDCS-PIN48-SD 脉冲变压器板

SDCS-PIN48-SD 脉冲变压器板是一种多功能组件，设计用于工业自动化和控制系统。 它主要用作直流电机控制器和交流电机之间的接口，可实现电机的精 确速度和位置控制。

主要特点：

脉冲变压器：SDCS-PIN48-SD 板集成了脉冲变压器，可将直流信号与交流电机隔离开来，保护控制器电路免受高压尖峰和噪声的影响。

信号转换：该板将来自电机控制器的直流控制信号转换为适当的脉冲序列，以驱动交流电机。

速度和位置控制：SDCS-PIN48-SD通过精 确转换来自控制器的控制信号，促进交流电机的精 确速度和位置控制。

反馈机制：该板可以包含反馈机制，为电机控制器提供有关电机实际速度和位置的信息，实现闭环控制。

应用：

SDCS-PIN48-SD脉冲变压器板适用于各种工业环境，在这些环境中，交流电机的精 确控制至关重要：

输送系统：在制造、控制制造中传送带的速度和位置，包装和物料搬运应用。。

机床：在数控机床、在数控机床中实现主轴转速和进给速度的精 确控制，铣床和车床。。

机器人：在各种工业自动化任务中控制机械臂和执行器的运动。

暖通空调系统：调节风机和泵在加热过程中的速度，通风和空调系统。风扇和泵的速度。

医疗设备：控制离心机和泵等医疗设备中电机的速度和位置。

SDCS-PIN48-SD 脉冲变压器板

Sdsc-pin48-sd pulse transformer board is a multifunctional component designed for use in industrial automation and control systems. It is mainly used as an interface between the DC motor controller and the AC motor to achieve accurate speed and position control of the motor.

Main features:

Pulse transformer: The SDCS PIN48-SD board incorporates a pulse transformer that isolates the DC signal from the AC motor, protecting the controller circuit from high voltage spikes and noise.

Signal conversion: The board converts the DC control signal from the motor controller into the appropriate pulse train to drive the AC motor.

Speed and position control: The SDSC-PIN48-SD facilitates precise speed and position control of AC motors by precisely converting control signals from the controller.

Feedback mechanism: The board may contain feedback mechanisms that provide information to the motor controller about the actual speed and position of the motor, enabling closed-loop control.

Applications:

Sdsc-pin48-sd pulse transformer boards are suitable for a variety of industrial environments where precise control of AC motors is essential:

Conveying systems: In manufacturing, controlling the speed and position of conveyor belts in manufacturing, packaging and material handling applications.

Machine tools: Precise control of spindle speed and feed speed in CNC machine tools, milling machines and lathes.

Robots: Control the movement of robotic arms and actuators in a variety of industrial automation tasks.

Hvac systems: Regulate the speed of fans and pumps during heating, ventilation and air conditioning systems. Fan and pump speed.

Medical equipment: Controls the speed and position of motors in medical equipment such as centrifuges and pumps.
