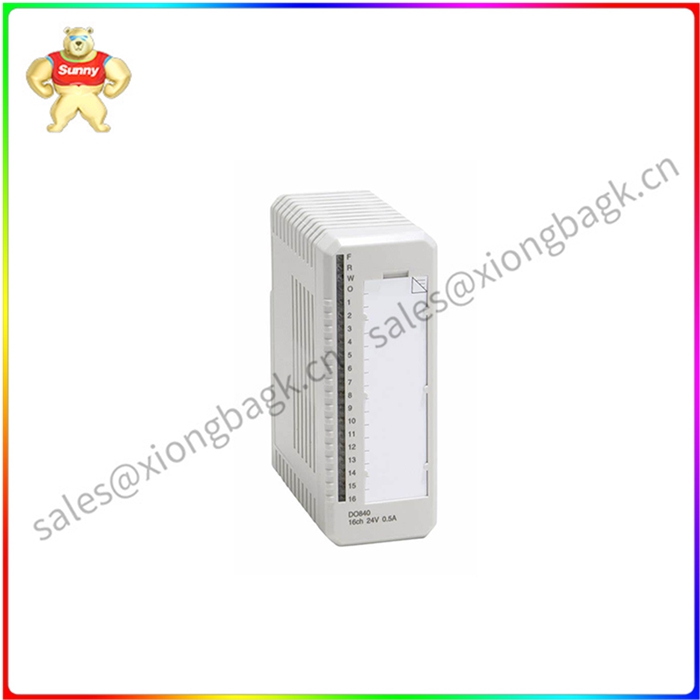

DO840 3BSE020838R1 数字量输出 24V S/R 16 通道

DO840 3BSE020838R1 数字量输出 24V S/R 16 通道

ABB DO840 3BSE020838R1数字输出模块是ABB Ability System 800xA分布式控制系统（DCS）中的多功能组件。 它可作为控制工业应用中各种执行器和设备的可靠接口。

主要特点：

16 个电流吸收输出通道：该模块提供 16 个电流吸收输出通道，允许控制各种执行器，包括继电器，螺线管和阀门。

高输出电流：每个输出通道zui多可以处理 0。5 A 电流，能够控制强大的执行器。

短路保护：该模块为每个输出通道集成了短路保护，可在防止在接线故障或过载的情况下造成潜在损坏。

分组隔离：输出通道分为两个独立的组，防止不同组之间的干扰，确保在嘈杂的工业环境中可靠运行。

高 级板载诊断：DO840 3BSE020838R1 具有先进的板载诊断功能，提供实时状态信息和故障检测能力。

紧凑型设计：该模块的紧凑尺寸和轻质结构使其适用于空间受限的应用。

技术规格：

通道数： 16
输出类型：电流吸收
Output current: 0.5 A per channel
工作电压：24 伏直流电
工作温度：-25°C 至 +55°C
工作湿度：0% 至 95%，无冷凝
高 级板载诊断：是
应用：

ABB DO840 3BSE020838R1数字量输出模块广泛应用于需要精 确控制执行器和设备的各种行业，包括：

过程控制：该模块通常用于过程控制应用中，用于控制阀门、泵和其他参与调节过程参数（如温度、压力、流量和液位）的执行器。

制造：DO840 3BSE020838R1 在制造环境中用于控制涉及物料搬运、装配和生产过程的输送机、机器人和其他执行器。

楼宇自动化：该模块用于楼宇自动化系统，以控制照明、HVAC 系统和安全系统。

基础设施管理：DO840 3BSE020838R1 用于基础设施管理系统，用于控制水处理、运输和配电系统中涉及的闸门、泵和其他执行器。

总体而言，ABB DO840 3BSE020838R1数字输出模块是各种工业应用中可靠、精 确控制执行器和设备的重要组件。

DO840 3BSE020838R1 数字量输出 24V S/R 16 通道

The ABB DO840 3BSE020838R1 digital output module is a versatile component in the ABB Ability System 800xA distributed control System (DCS). It can be used as a reliable interface for controlling various actuators and devices in industrial applications.

Main features:

16 current absorption output channels: The module offers 16 current absorption output channels that allow control of a variety of actuators, including relays, solenids, and valves.

High output current: Each output channel can handle up to 0. 5 A current, capable of controlling powerful actuators.

Short-circuit protection: The module incorporates short-circuit protection for each output channel to prevent potential damage in the event of wiring failure or overload.

Packet isolation: The output channel is divided into two independent groups to prevent interference between different groups and ensure reliable operation in noisy industrial environments.

Advanced onboard diagnostics: The DO840 3BSE020838R1 features advanced onboard diagnostics that provide real-time status information and fault detection capabilities.

Compact design: The compact size and lightweight construction of the module make it suitable for space-constrained applications.

Technical specifications:

Number of channels: 16
Output type: Current absorption
Output current: 0.5 A per channel
Operating voltage: 24 volts DC
Operating temperature: -25°C to +55°C
Operating humidity: 0% to 95%, no condensation
Advanced onboard Diagnostics: Yes
Applications:

ABB DO840 3BSE020838R1 digital output modules are used in a wide range of industries where precise control of actuators and equipment is required, including:

Process control: This module is commonly used in process control applications to control valves, pumps, and other actuators involved in regulating process parameters such as temperature, pressure, flow, and level.

Manufacturing: DO840 3BSE020838R1 is used in manufacturing environments to control conveyors, robots and other actuators involved in material handling, assembly and production processes.

Building Automation: This module is used in building automation systems to control lighting, HVAC systems and security systems.

Infrastructure Management: DO840 3BSE020838R1 is used in infrastructure management systems to control gates, pumps and other actuators involved in water treatment, transportation and power distribution systems.

Overall, the ABB DO840 3BSE020838R1 digital output module is an important component for reliable and precise control of actuators and equipment in a variety of industrial applications.
