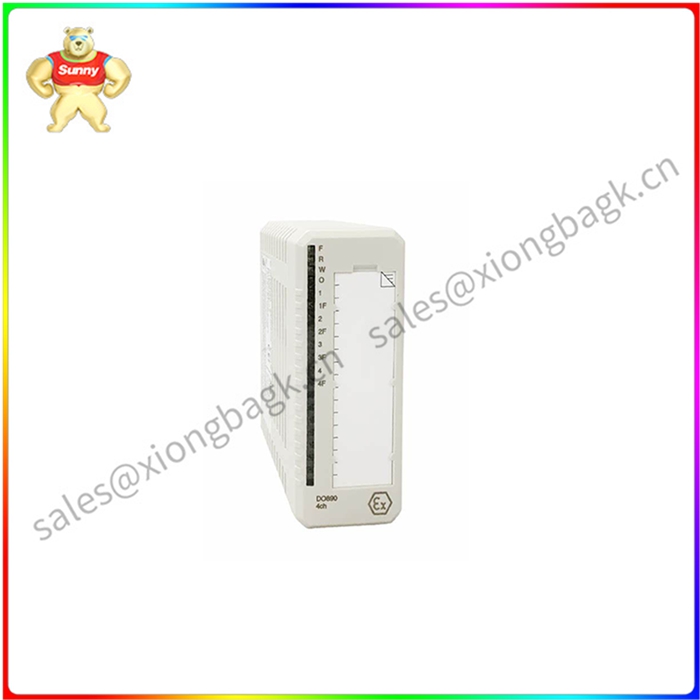

DO890 3BSC690074R1 数字输出 4x1 通道

DO890 3BSC690074R1 数字输出 4x1 通道

ABB DO890 3BSC690074R1数字量输出模块是ABB Ability System 800xA分布式控制系统（DCS）中的多功能组件。 它是一个可靠的接口，用于控制危险区域的各种执行器和设备，特别是在根据 IECEx 和 ATEX 标准在 0 区、1 区和 II 区环境中。

主要特点：

本质安全接口：该模块集成了本质安全接口，可在分类为 0 区、1 区或 II 区的危险区域安全运行。

四个隔离式数字输出通道：模块的四个输出通道中的每一个都是电气隔离的，防止通道之间的干扰，确保在嘈杂的工业环境中可靠运行。

大电流容量：每个输出通道可以处理高达 40 mA 的电流，允许控制各种本质安全型执行器和设备。

LED 状态指示灯：该模块为每个通道提供 LED 状态指示灯，提供通道状态的视觉指示，包括输出激活和故障条件。

紧凑型设计：该模块的紧凑尺寸和轻质结构使其适用于空间受限的应用。

技术规格：

通道数： 4
输出类型：数字输出（高边开关）
输出电流：每通道 40 mA
Operating voltage: 11 VDC to 35 VDC
Operating temperature: -40°C to +70°C
工作湿度：0% 至 95%，无冷凝
本质安全认证：IECEx、ATEX
应用：

ABB DO890 3BSC690074R1数字量输出模块广泛用于需要精 确控制本质安全执行器和设备的各种危险区域应用，包括：

石油和天然气：该模块通常用于石油和天然气勘探和生产设施，以控制井口控制、管道运输和精炼等过程中涉及的阀门、泵和其他执行器。

化学处理：DO890 3BSC690074R1 用于化学加工厂，以控制参与危险化学反应和产品处理的阀门、混合器和其他执行器。

制药：该模块用于制药设施，用于控制混合、灭菌和包装等过程中涉及的阀门、泵和其他执行器。

采矿和矿物加工：DO890 3BSC690074R1 用于采矿和矿物加工操作，以控制参与物料搬运和加工的输送机、给料机和其他执行器。

总体而言，ABB DO890 3BSC690074R1数字量输出模块是安全可靠地控制危险区域中各种执行器和设备的关键组件，可确保高效运行、过程安全并遵守严格的安全法规。

DO890 3BSC690074R1 数字输出 4x1 通道

The ABB DO890 3BSC690074R1 digital output module is a multi-functional component of the ABB Ability System 800xA distributed control System (DCS). It is a reliable interface for controlling a wide range of actuators and equipment in hazardous areas, especially in Zone 0, Zone 1 and Zone II environments according to IECEx and ATEX standards.

Main features:

Intrinsically Safe interface: This module integrates intrinsically safe interface to operate safely in hazardous areas classified as Zone 0, Zone 1 or Zone II.

Four isolated digital output channels: Each of the module's four output channels is electrically isolated, preventing interference between channels and ensuring reliable operation in noisy industrial environments.

High current capacity: Each output channel can handle up to 40 mA of current, allowing control of a wide range of intrinsically safe actuators and devices.

LED Status Indicator: This module provides an LED status indicator for each channel that provides a visual indication of the channel status, including output activation and failure conditions.

Compact design: The compact size and lightweight construction of the module make it suitable for space-constrained applications.

Technical specifications:

Number of channels: 4
Output type: Digital output (high side switch)
Output current: 40 mA per channel
Operating voltage: 11 VDC to 35 VDC
Operating temperature: -40°C to +70°C
Operating humidity: 0% to 95%, no condensation
Intrinsic safety certification: IECEx, ATEX
Applications:

The ABB DO890 3BSC690074R1 digital output module is used in a wide range of hazardous area applications that require precise control of intrinsically safe actuators and equipment, including:

Oil and Gas: This module is commonly used in oil and gas exploration and production facilities to control valves, pumps, and other actuators involved in processes such as wellhead control, pipeline transportation, and refining.

Chemical processing: DO890 3BSC690074R1 is used in chemical processing plants to control valves, mixers and other actuators involved in hazardous chemical reactions and product handling.

Pharmaceutical: This module is used in pharmaceutical facilities to control valves, pumps and other actuators involved in processes such as mixing, sterilization and packaging.

Mining and Mineral Processing: DO890 3BSC690074R1 is used in mining and mineral processing operations to control conveyors, feeders and other actuators involved in material handling and processing.

Overall, the ABB DO890 3BSC690074R1 digital output module is a key component for the safe and reliable control of various actuators and equipment in hazardous areas, ensuring efficient operation, process safety and compliance with stringent safety regulations.
