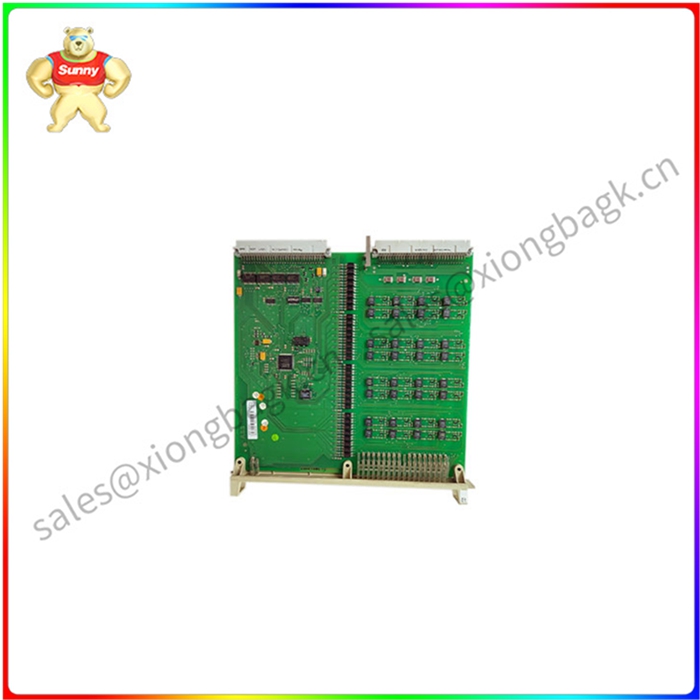

DSDI110AV1 3BSE018295R1 数字输入板

DSDI110AV1 3BSE018295R1 数字输入板

ABB DSDI110AV1 3BSE018295R1数字输入板是ABB Advant OCS和S100 I/O系统中的多功能组件。 它可作为可靠的接口，用于监测和控制工业应用中的各种数字信号。

主要特点：

32 个数字输入通道：该模块提供 32 个数字输入通道，能够监控各种传感器，开关和其他二进制输入设备。

高速数据采集：该DSDI110AV1具有高速数据采集功能，确保及时准确地捕获输入信号。

电气隔离：每个输入通道都是电气隔离的，防止通道之间的干扰，确保在嘈杂的工业环境中可靠运行。

过滤和去抖动：该模块集成了滤波和去抖动机制，以zui大限度地减少噪声和瞬态对输入信号的影响。

诊断功能：该DSDI110AV1提供诊断功能，用于检测和识别输入电路中的潜在故障或错误。

技术规格：

通道数： 32
输入类型：数字输入
工作电压：24 伏直流电
工作温度：-25°C 至 +55°C
工作湿度：0% 至 95% 无冷凝
数据采集速率：高达 10 kHz
应用：

ABB DSDI110AV1数字输入板广泛应用于需要监测和控制数字信号的各个行业。包括：

过程控制：该模块通常用于过程控制应用中，用于监控传感器、开关和其他输入设备的状态，这些设备涉及调节过程参数，如温度、压力、流量和液位。

制造：DSDI110AV1在制造环境中用于监控物料搬运、装配和生产过程中涉及的传感器、开关和其他输入设备的状态。

楼宇自动化：该模块用于楼宇自动化系统，以监控传感器、开关和其他输入设备的状态，这些设备涉及控制照明、HVAC 系统和安全系统。

基础设施管理：DSDI110AV1用于基础设施管理系统，用于监控水处理、运输和配电系统中涉及的传感器、开关和其他输入设备的状态。

总体而言，ABB DSDI110AV1数字输入板是各种工业应用中可靠监测和控制数字信号的重要组件。

DSDI110AV1 3BSE018295R1 数字输入板

The ABB DSDI110AV1 3BSE018295R1 digital input pad is a versatile component in ABB Advant OCS and S100 I/O systems. It can be used as a reliable interface for monitoring and controlling various digital signals in industrial applications.

Main features:

32 digital input channels: The module offers 32 digital input channels capable of monitoring various sensors, switches and other binary input devices.

High-speed data acquisition: The DSDI110AV1 features high-speed data acquisition to ensure timely and accurate capture of input signals.

Electrical isolation: Each input channel is electrically isolated, preventing interference between channels and ensuring reliable operation in noisy industrial environments.

Filtering and de-jitter: The module integrates filtering and de-jitter mechanisms to minimize the impact of noise and transients on the input signal.

Diagnostic function: The DSDI110AV1 provides diagnostic function to detect and identify potential faults or errors in the input circuit.

Technical specifications:

Number of channels: 32
Input type: numeric input
Operating voltage: 24 volts DC
Operating temperature: -25°C to +55°C
Operating humidity: 0% to 95% non-condensing
Data acquisition rate: up to 10 kHz
Applications:

The ABB DSDI110AV1 digital input board is widely used in various industries where digital signals need to be monitored and controlled. Includes:

Process control: This module is commonly used in process control applications to monitor the status of sensors, switches, and other input devices involved in regulating process parameters such as temperature, pressure, flow, and level.

Manufacturing: The DSDI110AV1 is used in manufacturing environments to monitor the status of sensors, switches and other input devices involved in material handling, assembly and production processes.

Building Automation: This module is used in building automation systems to monitor the status of sensors, switches, and other input devices involved in controlling lighting, HVAC systems, and security systems.

Infrastructure Management: The DSDI110AV1 is used in infrastructure management systems to monitor the status of sensors, switches and other input devices involved in water treatment, transportation and power distribution systems.

Overall, the ABB DSDI110AV1 digital input board is an important component for reliable monitoring and control of digital signals in a variety of industrial applications.
