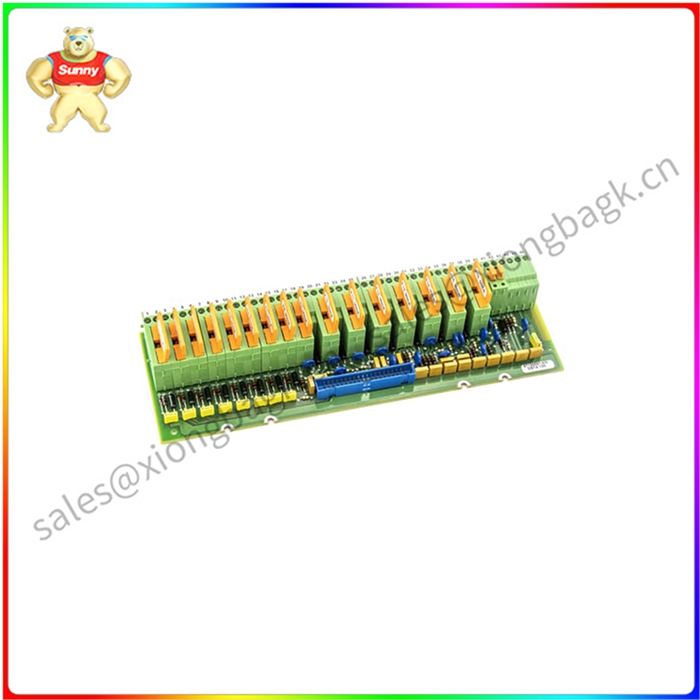

DSTA133 57120001-KN 模拟板连接单元

DSTA133 57120001-KN 模拟板连接单元

ABB DSTA133 57120001-KN 模拟板连接单元是 ABB S100 I/O 系统中的多功能组件。 它用作将模拟输入板连接到 S100 I/O 背板的可靠接口，从而能够采集和处理来自各种工业传感器和传感器的模拟信号。

主要特点：

16 个模拟输入通道：DSTA133连接单元提供 16 个模拟输入通道，允许连接具有不同信号类型和范围的各种模拟输入板。

隔离通道：每个输入通道都与背板和其他通道电气隔离，在嘈杂的工业环境中防止干扰并确保信号完整性。

热插拔设计：该模块支持热插拔，无需中断系统运行即可轻松更换或添加模拟输入板。

紧凑型设计：DSTA133采用紧凑的设计，zui大限度地减少控制柜和面板的空间需求。

坚固的结构：该模块专为恶劣的工业环境而设计，可承受极 端温度、振动和电磁干扰。

技术规格：

通道数： 16
输入类型：模拟输入（电压或电流）
工作电压：24 伏直流电
工作温度：-25°C 至 +55°C
工作湿度： 0% to 95% non-condensing
隔离：通道间和背板隔离
应用：

ABB DSTA133模拟板连接单元广泛用于需要采集和处理模拟信号的各个行业，包括：

过程控制：该模块通常用于过程控制应用，用于从测量温度、压力、流量、液位和其他过程参数的传感器收集数据。

制造：DSTA133用于制造环境中，以监视和控制生产过程的各个方面，例如机器性能、产品质量和资源消耗。

楼宇自动化：该模块用于楼宇自动化系统，用于监测和控制温度、湿度和照明条件等环境参数。

基础设施管理：DSTA133用于基础设施管理系统，以监视和控制关键基础设施组件，例如泵、阀门和配电设备。

总体而言，ABB DSTA133模拟板连接单元是各种工业应用中可靠、高效地采集模拟信号的重要组件，可实现过程和系统的实时监测、控制和优化。

DSTA133 57120001-KN 模拟板连接单元

The ABB DSTA133 57120001-KN Analog board connection unit is a versatile component in the ABB S100 I/O system. It serves as a reliable interface for connecting the analog pad to the S100 I/O backplane, enabling the acquisition and processing of analog signals from a variety of industrial sensors and sensors.

Main features:

16 analog input channels: The DSTA133 connection unit provides 16 analog input channels that allow the connection of various analog input boards with different signal types and ranges.

Isolated channels: Each input channel is electrically isolated from the backplane and other channels to prevent interference and ensure signal integrity in noisy industrial environments.

Hot-swappable design: The module supports hot-swappable, making it easy to replace or add an analog pad without interrupting system operation.

Compact design: The DSTA133 features a compact design that minimizes space requirements for control cabinets and panels.

Rugged construction: The module is designed for harsh industrial environments and can withstand extreme temperatures, vibration and electromagnetic interference.

Technical specifications:

Number of channels: 16
Input type: Analog input (voltage or current)
Operating voltage: 24 volts DC
Operating temperature: -25°C to +55°C
Operating humidity: 0% to 95% non-condensing
Isolation: The channel is isolated from the backplane
Applications:

ABB DSTA133 analog board connection units are used in a wide range of industries where analog signals need to be collected and processed, including:

Process control: This module is commonly used in process control applications to collect data from sensors that measure temperature, pressure, flow, level, and other process parameters.

Manufacturing: DSTA133 is used in manufacturing environments to monitor and control various aspects of the production process, such as machine performance, product quality and resource consumption.

Building Automation: This module is used in building automation systems to monitor and control environmental parameters such as temperature, humidity and lighting conditions.

Infrastructure Management: The DSTA133 is used in infrastructure management systems to monitor and control critical infrastructure components such as pumps, valves, and power distribution equipment.

Overall, the ABB DSTA133 analog board connection unit is an important component for the reliable and efficient acquisition of analog signals in a variety of industrial applications, enabling real-time monitoring, control and optimization of processes and systems.
