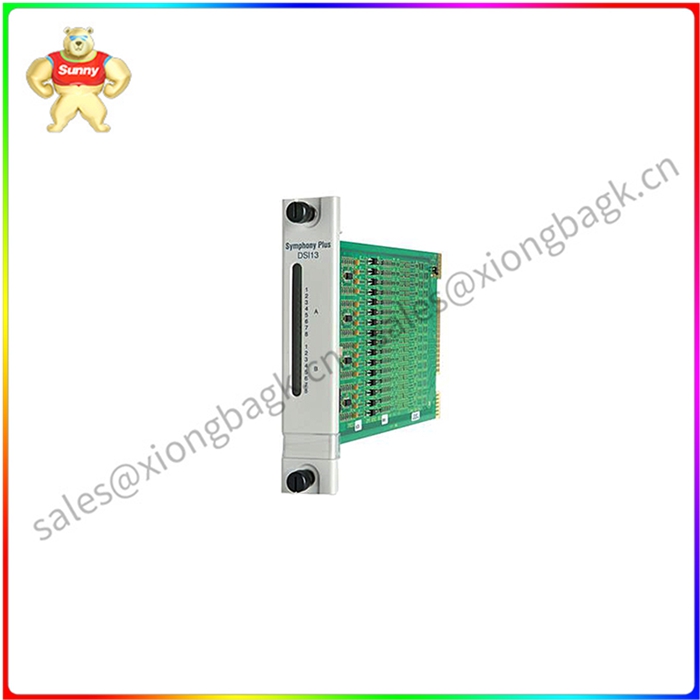

SPDSI13 数字量输入子模件

SPDSI13 数字量输入子模件

ABB SPDSI13数字输入子模块是ABB AC800PEC控制系统的关键组件，旨在接收和处理来自各种现场设备和传感器的数字输入信号。 它兼具紧凑性、可靠性和先进功能，是各行各业监测和控制应用的合适选择。

ABB SPDSI13数字输入子模块的主要特性：

紧凑型设计：采用紧凑而坚固的设计，可节省空间安装在控制柜或DIN导轨上。

High Channel Density:支持 16 个数字输入通道，实现对多个设备的高效监控。

灵活的信号配置：提供灵活的信号配置选项，允许选择信号极性，去抖动时间，和过滤设置。

高抗噪性：提供高抗噪性，以确保在电噪声环境中可靠地接收信号。

ABB SPDSI13数字输入子模块的应用：

ABB SPDSI13数字输入子模块在各种行业和自动化系统中都有应用。包括：

过程控制系统：用于过程控制系统，用于监控过程变量，如机器状态，阀位，和报警信号，确保安全高效的过程操作。

机器控制系统：用于机器控制系统，用于监控机器运动、位置和安全联锁装置，实现机器协调运行并防止潜在危险。

数据采集系统：用于数据采集系统，从传感器、开关和其他设备收集数字数据，进行分析和监控。

远程监测和控制系统：用于远程监测和控制系统，以监测和控制位于偏远或危险区域的设备和过程。

ABB SPDSI13数字输入子模块的应用示例：

监控制造工厂中的机器状态：该SPDSI13可用于监控制造工厂中的机器状态，通过接收来自传感器的信号来指示机器运行、停止或故障情况，使操作员能够快速识别和解决潜在问题。

检测管道系统中的阀门位置：数字输入子模块可用于检测管道系统中的阀门位置，通过接收来自指示阀门打开、关闭或中间位置的限位开关的信号，确保适当的流量控制并防止潜在的泄漏或溢出。

从火灾探测系统收集报警信号：该SPDSI13可用于通过接收来自烟雾探测器、热探测器和手动拉站的信号、触发报警通知和启动应急响应程序来收集火灾探测系统的报警信号。

监控电厂中的远程设备：数字输入子模块可用于通过接收指示设备状态的信号（例如断路器打开、关闭或跳闸情况）来监控电厂中的远程设备，使操作员能够远程监控系统运行状况并防止停电。

SPDSI13 数字量输入子模件

The ABB SPDSI13 digital input submodule is a key component of the ABB AC800PEC control system designed to receive and process digital input signals from a variety of field devices and sensors. With its combination of compactness, reliability and advanced features, it is the right choice for monitoring and control applications in a wide range of industries.

Key features of ABB SPDSI13 digital Input submodule:

Compact design: The compact yet robust design saves space for mounting on control cabinets or DIN rails.

High Channel Density: Supports 16 digital input channels for efficient monitoring of multiple devices.

Flexible signal configuration: Provides flexible signal configuration options that allow you to select signal polarity, dejitter time, and filter Settings.

High noise resistance: Provides high noise resistance to ensure reliable reception of signals in electrically noisy environments.

Applications of ABB SPDSI13 digital input submodule:

The ABB SPDSI13 digital input submodule is used in a variety of industries and automation systems. Includes:

Process control systems: Used in process control systems to monitor process variables such as machine status, valve position, and alarm signals to ensure safe and efficient process operation.

Machine control systems: Used in machine control systems to monitor machine movement, position and safety interlocking devices to achieve coordinated machine operation and prevent potential hazards.

Data acquisition systems: Used in data acquisition systems to collect digital data from sensors, switches and other devices for analysis and monitoring.

Remote Monitoring and control systems: Used for remote monitoring and control systems to monitor and control equipment and processes located in remote or hazardous areas.

Example of application of ABB SPDSI13 digital input submodule:

Monitor machine status in manufacturing plants: The SPDSI13 can be used to monitor machine status in manufacturing plants by receiving signals from sensors to indicate machine operation, stop or failure, enabling operators to quickly identify and resolve potential problems.

Detecting valve position in ductwork: The digital input submodule can be used to detect valve position in ductwork, ensuring proper flow control and preventing potential leaks or spills by receiving signals from limit switches indicating valve opening, closing, or intermediate positions.

Collect alarm signals from fire detection systems: The SPDSI13 can be used to collect alarm signals from fire detection systems by receiving signals from smoke detectors, heat detectors and manual pull stations, triggering alarm notifications and initiating emergency response procedures.

Monitoring remote devices in a power plant: Digital input submodules can be used to monitor remote devices in a power plant by receiving signals indicating the status of the device, such as the opening, closing, or tripping of a circuit breaker, enabling operators to remotely monitor system health and prevent power outages.
