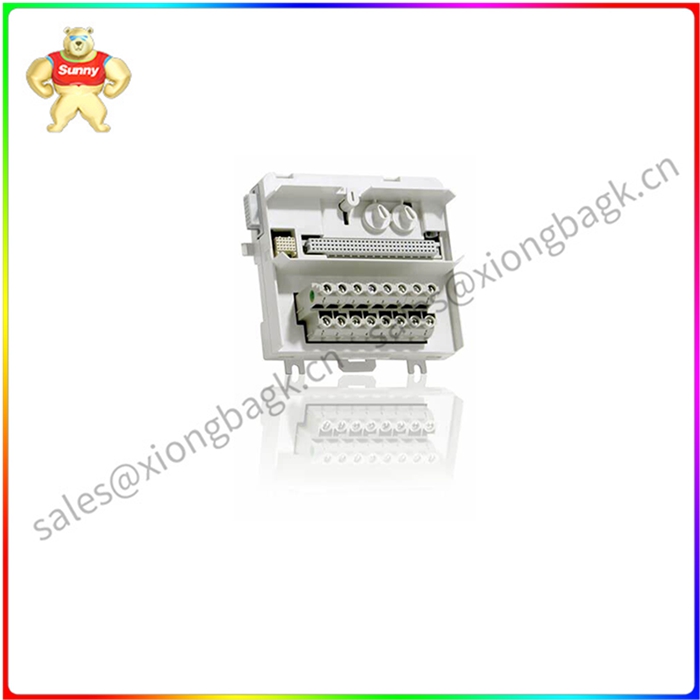

TU831V1 3BSE013235R1 扩展模块终端单元

TU831V1 3BSE013235R1 扩展模块终端单元

TU831V1 3BSE013235R1是一款扩展模块终端单元（MTU），设计用于ABB的Advant 800xA分布式控制系统（DCS）。 它提供了一种灵活高效的方式来扩展DCS的I/O功能，从而能够连接额外的现场设备进行监测和控制。

TU831V1 3BSE013235R1的主要特点：

模块化设计：MTU 采用模块化设计，可允许它轻松添加到现有的DCS系统中，以扩展I/O容量。

32 信号端子：它提供32个信号端子，与标准 MTU 相比，I/O 点显著增加。

灵活的 I/O 配置：端子可以针对各种信号类型进行配置，包括模拟输入，模拟输出，数字输入，和数字输出，从而提供设备连接的多功能性。

IP67 级外壳：MTU 安装在 IP67 级外壳中，确保防尘、防潮和恶劣的工业环境。

易于安装和维护：MTU 具有简单的设计和安装选项，便便于安装和维护。

TU831V1 3BSE013235R1的应用：

大规模工业自动化：MTU 特别适用于需要大量 I/O 点的大型工业自动化系统。

复杂的过程控制系统：在复杂的过程控制系统中，MTU可以满足各种传感器的各种I/O需求， actuators,和控制元件。的各种I/O需求。

扩展现有DCS系统：MTU 可用于扩展现有 DCS 系统的 I/O 容量，无需对系统进行全面检修，即可集成其他设备或工艺。

升级 I/O 功能：MTU 可用于升级旧 DCS 系统的 I/O 功能，允许连接具有高 级功能的现代传感器和执行器。

满足不断增长的 I/O 需求：MTU 可以满足工业设施在扩展或采用新技术时不断增长的 I/O 需求。

TU831V1 3BSE013235R1的应用示例：

连接制药厂中的传感器和执行器：MTU 可用于连接制药厂中的大量传感器和执行器，从而实现对混合、加热和包装等各种过程的精 确监测和控制。

监测和控制大型电厂：MTU 可用于监测和控制大型电厂，连接测量温度、压力、流量和其他关键参数的传感器，同时还控制调节阀门、泵和其他设备的执行器。

扩展钢厂的 I/O：MTU 可用于扩展钢厂的 I/O 容量，从而集成额外的传感器和执行器，以监测和控制从原材料处理到成品输出的生产过程。

升级水处理厂的 I/O：MTU 可用于升级水处理厂的 I/O 功能，允许连接现代传感器和执行器，以便更精 确地监测和控制水处理过程。

满足智能工厂的 I/O 需求：MTU 可以满足智能工厂不断增长的 I/O 需求，能够连接庞大的传感器和执行器网络，以实现实时数据收集、分析和控制，优化生产流程和资源利用率。

总体而言，TU831V1 3BSE013235R1是一款多功能且可扩展的扩展模块终端单元，在扩展ABB的Advant 800xA DCS的I/O功能方面发挥着至关重要的作用。 其模块化设计、灵活的 I/O 配置和 IP67 级外壳使其适用于需要大量 I/O 点的苛刻工业自动化、过程控制和监控应用。

TU831V1 3BSE013235R1 扩展模块终端单元

The TU831V1 3BSE013235R1 is an expansion module terminal unit (MTU) designed for use in ABB's Advant 800xA Distributed control System (DCS). It provides a flexible and efficient way to extend the I/O capabilities of DCS, enabling the connection of additional field equipment for monitoring and control.

Main features of TU831V1 3BSE013235R1:

Modular design: MTU's modular design allows it to be easily added to existing DCS systems to expand I/O capacity.

32 Signal terminals: It offers 32 signal terminals with a significant increase in I/O points compared to standard MTU.

Flexible I/O configuration: Terminals can be configured for a variety of signal types, including analog input, analog output, digital input, and digital output, providing device connectivity versatility.

Ip67-rated housing: MTU is installed in an IP67-rated housing to ensure dust, moisture and harsh industrial environments.

Easy installation and maintenance: MTU has simple design and installation options for easy installation and maintenance.

Application of TU831V1 3BSE013235R1:

Large-scale Industrial automation: MTU is particularly suitable for large industrial automation systems that require a large number of I/O points.

Complex process control systems: In complex process control systems, MTU can meet the various I/O requirements of various sensors, actuators, and control elements. Various I/O needs.

Expanding existing DCS systems: MTU can be used to expand the I/O capacity of existing DCS systems without requiring a complete overhaul of the system to integrate other equipment or processes.

Upgrade I/O capabilities: MTU can be used to upgrade the I/O capabilities of older DCS systems, allowing the connection of modern sensors and actuators with advanced capabilities.

Meeting Growing I/O needs: MTU can meet the growing I/O needs of industrial facilities as they expand or adopt new technologies.

Application example of TU831V1 3BSE013235R1:

Connecting sensors and actuators in pharmaceutical plants: MTU can be used to connect a large number of sensors and actuators in pharmaceutical plants, enabling precise monitoring and control of various processes such as mixing, heating and packaging.

Monitoring and control of large power plants: MTU can be used to monitor and control large power plants, connecting sensors that measure temperature, pressure, flow and other critical parameters, while also controlling actuators that regulate valves, pumps and other equipment.

Expanding I/O in a steel mill: MTU can be used to expand the I/O capacity of a steel mill to integrate additional sensors and actuators to monitor and control the production process from raw material handling to finished product output.

Upgrade I/O of water treatment plants: MTU can be used to upgrade the I/O function of water treatment plants, allowing the connection of modern sensors and actuators for more precise monitoring and control of water treatment processes.

Meet the I/O needs of smart factories: MTU can meet the growing I/O needs of smart factories by connecting a vast network of sensors and actuators for real-time data collection, analysis and control to optimize production processes and resource utilization.

Overall, the TU831V1 3BSE013235R1 is a versatile and scalable expansion module terminal unit that plays a crucial role in extending the I/O capabilities of ABB's Advant 800xA DCS. Its modular design, flexible I/O configuration and IP67-rated housing make it suitable for demanding industrial automation, process control and monitoring applications that require a large number of I/O points.
