24765-01-01 外壳膨胀传感器组件 分布式控制系统

24765-01-01 外壳膨胀传感器组件 分布式控制系统

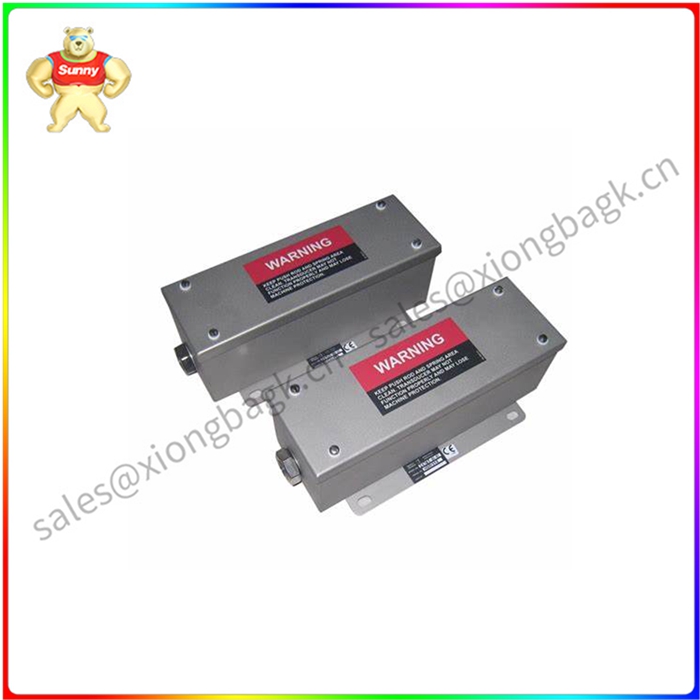

24765-01-01 外壳扩展传感器组件是一种非接触式传感器，用于测量旋转机壳的膨胀。它通常用于分布式控制系统（DCS）中，用于机械保护和状态监测。
主要特点：
非接触式测量：该传感器采用非接触式测量原理，通常使用磁场或涡流，在不干扰其操作的情况下跟踪套管的膨胀。
高精度：它提供高精度的扩展测量，确保可靠地检测套管状况的细微变化。
测量范围广：该传感器提供广泛的测量范围，以适应各种外壳膨胀率。
坚固耐用的设计：其坚固的结构可承受恶劣的工业环境，包括极 端温度，振动和污染物。
易于安装：该传感器设计用于简单安装和集成到现有的DCS架构中。
技术规格：
测量原理：磁场或涡流
Measurement Range:zui多 25 个。4 毫米 （1.00 英寸）
准确性： ±0.满量程的 1%
分辨率： 0.001 毫米 （0.00004英寸）
工作温度：-40°C 至 85°C（-40°F 至 185°F）
振动： 0.05 g rms, 57 to 500 Hz
Shock: 5 g, 22 ms half-sine波
Weight: 2 kg (4.4 lbs)
应用：
机械保护：24765-01-01 传感器广泛用于基于 DCS 的机械保护系统，用于监测外壳膨胀、这可能表明热应力的迹象，轴承磨损，或其他潜在问题。
状态监测：它被用于状态监测程序，以跟踪套管随时间推移的膨胀趋势，可及早发现潜在问题并进行预防性维护。
根本原因分析：传感器的数据记录功能有助于分析机械问题的根本原因，帮助确定套管膨胀的根本原因并防止问题再次发生。
恶劣环境应用：其坚固的设计使其适用于恶劣工业环境中的状态监测，可承受极 端温度、振动和污染物。
精密测量要求：24765-01-01 传感器提供高精度膨胀测量，适合需要精 确监测外壳完整性和热条件的应用。

24765-01-01 外壳膨胀传感器组件 分布式控制系统

The 24765-01-01 Housing Expansion sensor assembly is a non-contact sensor for measuring the expansion of rotating housing. It is commonly used in distributed control systems (DCS) for mechanical protection and condition monitoring.
Main features:
Non-contact measurement: This sensor uses a non-contact measurement principle, usually using a magnetic field or eddy current, to track the expansion of the casing without interfering with its operation.
High accuracy: It provides high precision extended measurements to ensure reliable detection of subtle changes in casing condition.
Wide measuring range: The sensor offers a wide measuring range to accommodate various housing expansion rates.
Rugged design: Its rugged construction withstands harsh industrial environments, including extreme temperatures, vibrations and contaminants.
Easy installation: The sensor is designed for simple installation and integration into existing DCS architectures.
Technical specifications:
Measurement principle: magnetic field or eddy current
Measurement Range: A maximum of 25. 4 mm (1.00 in)
Accuracy: ±0. 1% of full scale
Resolution: 0.001 mm (0.00004 in)
Operating temperature: -40°C to 85°C (-40°F to 185°F)
Vibration: 0.05g rms, 57 to 500 Hz
Shock: 5 g, 22 ms half-sine wave
Weight: 2kg (4.4lbs)
Applications:
Mechanical protection: The 24765-01-01 sensor is widely used in DCS based mechanical protection systems to monitor housing expansion, which can indicate signs of thermal stress, bearing wear, or other potential problems.
Condition monitoring: It is used in condition monitoring programs to track casing expansion trends over time, enabling early detection of potential problems and preventive maintenance.
Root cause analysis: The sensor's data logging capabilities help analyze the root cause of mechanical problems, help identify the root cause of casing expansion and prevent problems from recurring.
Harsh Environment applications: Its rugged design makes it suitable for condition monitoring in harsh industrial environments, withstanding extreme temperatures, vibrations and contaminants.
Precision Measurement requirements: The 24765-01-01 sensor provides high-precision expansion measurements for applications that require accurate monitoring of housing integrity and thermal conditions.
