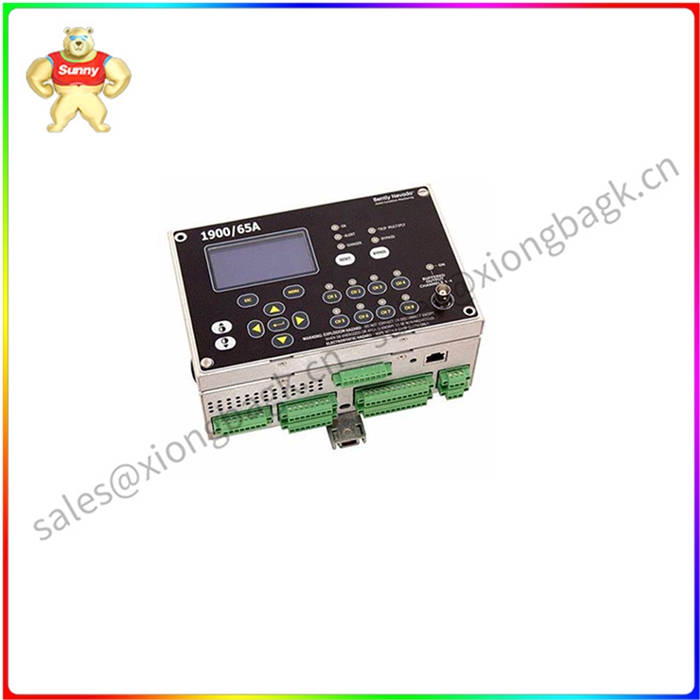

190065A-01-01-03-00-00 风机振动监测器

190065A-01-01-03-00-00 风机振动监测器

190065A-01-01-03-00-00 通用设备监测器是一种多功能振动监测设备，设计用于在各种工业应用中对旋转机械进行连续监测和保护。它结合了高精度振动测量、全面的数据分析和警报生成功能，以保护关键设备并防止代价高昂的故障。
主要特点：
全面的振动监测：跟踪三个轴（轴向、径向和切向）的振动水平，以提供对机器健康状况的全面评估。
高精度：提供精 确的振动测量，可及早发现机器状况的细微变化。
多个传感器输入：支持多达四个近距离或地震传感器，可同时监测多个振动参数。
数据记录和分析：记录和存储振动数据以进行历史分析，从而确定趋势和根本原因分析。
警报生成：当超过预定义的振动阈值时，会生成警报，提醒操作员注意潜在问题。
坚固耐用的设计：可承受恶劣的工业环境，包括极 端温度、振动和电气噪声。
技术规格：
振动测量范围：峰峰值至峰值可达 25.4 mm （1.00 英寸）
精度：满量程的±5%
分辨率：0.01毫米（0.00004英寸）
工作温度：-40°C 至 85°C（-40°F 至 185°F）
储存温度：-40°C 至 100°C（-40°F 至 212°F）
湿度：5% 至 95% RH（非冷凝）
振动：0.05 g rms，57 至 500 Hz
冲击：5 g，22 ms 半正弦波
重量：2 千克（4.4 磅）

190065A-01-01-03-00-00 风机振动监测器

190065A-01-01-03-00-00 The Universal Equipment Monitor is a versatile vibration monitoring device designed for continuous monitoring and protection of rotating machinery in a variety of industrial applications. It combines high-precision vibration measurement, comprehensive data analysis and alarm generation capabilities to protect critical equipment and prevent costly failures.
Main features:
Comprehensive vibration monitoring: Tracking vibration levels across three axes (axial, radial and tangential) to provide a comprehensive assessment of the machine's health.
High accuracy: Provides accurate vibration measurement for early detection of subtle changes in machine condition.
Multiple sensor inputs: Up to four proximity or seismic sensors are supported to monitor multiple vibration parameters simultaneously.
Data logging and analysis: Vibration data is recorded and stored for historical analysis to identify trends and root cause analysis.
Alarm generation: When a predefined vibration threshold is exceeded, an alarm is generated to alert the operator to potential problems.
Rugged design: Withstands harsh industrial environments, including extreme temperatures, vibration and electrical noise.
Technical specifications:
Vibration measurement range: up to 25.4 mm (1.00 in) peak-to-peak
Accuracy: ±5% of full scale
Resolution: 0.01 mm (0.00004 in)
Operating temperature: -40°C to 85°C (-40°F to 185°F)
Storage temperature: -40°C to 100°C (-40°F to 212°F)
Humidity: 5% to 95% RH (non-condensing)
Vibration: 0.05g rms, 57 to 500 Hz
Shock: 5 g, 22 ms half sine wave
Weight: 2 kg (4.4 lb)
