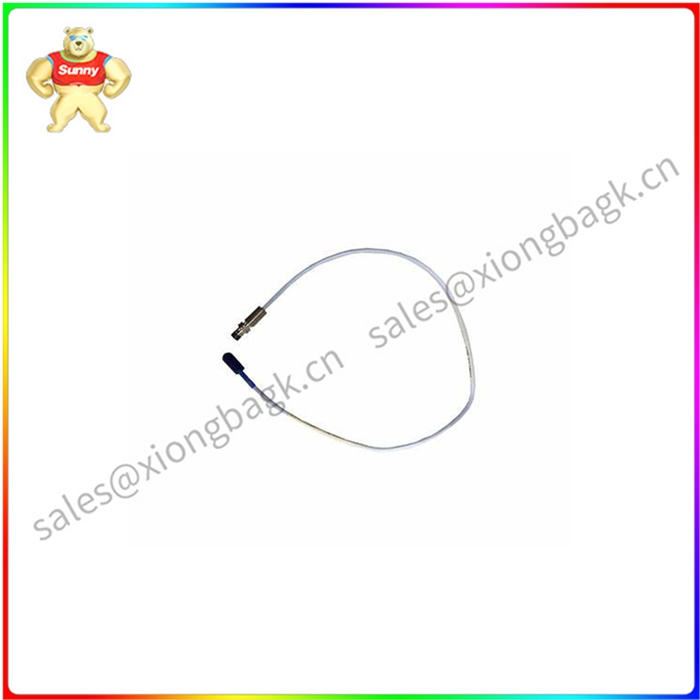

330106-05-30-05-02-05 振动传感器探头

330106-05-30-05-02-05 振动传感器探头

330106-05-30-05-02-05 振动传感器探头是 Bently Nevada 3300 XL 机械保护系统的关键部件。它专为在恶劣的工业环境中进行精 确可靠的振动测量而设计，能够有效监测机械的健康状况并防止代价高昂的故障。
主要特点：
高精度振动测量：在很宽的频率范围内提供精 确的振动测量，检测机器状况的细微变化。
坚固耐用的设计：可承受恶劣的工业环境，包括极 端温度、振动和电气噪声，确保在苛刻条件下可靠运行。
非接触式测量：采用非接触式涡流技术，无需与旋转部件进行物理接触，并zui大限度地减少磨损。
多种安装方式：支持多种安装配置，包括反向安装、螺柱安装和顶部安装，适应不同的机械布局。
集成电子：采用集成电子元件，可放大和调节振动信号，减少对外部信号调节设备的需求。
技术规格：
探头类型：3300 XL 8 mm Proximitor 传感器
探头尖 端材料：聚苯硫醚（PPS）
探头外壳材料：AISI 303 或 304 不锈钢 （SST）
灵敏度：100 mV/g
频率范围：2 Hz 至 20 kHz
输出电压范围：0 至 10 VDC
工作温度：-40°C 至 85°C（-40°F 至 185°F）
储存温度：-40°C 至 100°C（-40°F 至 212°F）
湿度：5% 至 95% RH（非冷凝）
振动：0.05 g rms，57 至 500 Hz
冲击：5 g，22 ms 半正弦波

330106-05-30-05-02-05 振动传感器探头

330106-05-30-05-02-05 Vibration sensor probes are key components of the Bently Nevada 3300 XL mechanical protection system. It is designed for accurate and reliable vibration measurement in harsh industrial environments, effectively monitoring the health of machinery and preventing costly failures.
Main features:
High precision vibration measurement: Provides accurate vibration measurement over a wide frequency range to detect subtle changes in machine condition.
Rugged design: Withstands harsh industrial environments, including extreme temperatures, vibration and electrical noise, ensuring reliable operation in demanding conditions.
Non-contact measurement: Non-contact eddy current technology eliminates the need for physical contact with rotating parts and minimizes wear.
Multiple mounting methods: Support a variety of mounting configurations, including reverse mounting, stud mounting and top mounting, to adapt to different mechanical layouts.
Integrated electronics: The use of integrated electronic components can amplify and regulate vibration signals, reducing the need for external signal conditioning equipment.
Technical specifications:
Probe type: 3300 XL 8 mm Proximitor sensor
Probe tip material: polyphenylene sulfide (PPS)
Probe housing material: AISI 303 or 304 stainless steel (SST)
Sensitivity: 100 mV/g
Frequency range: 2 Hz to 20 kHz
Output voltage range: 0 to 10 VDC
Operating temperature: -40°C to 85°C (-40°F to 185°F)
Storage temperature: -40°C to 100°C (-40°F to 212°F)
Humidity: 5% to 95% RH (non-condensing)
Vibration: 0.05g rms, 57 to 500 Hz
Shock: 5 g, 22 ms half sine wave
