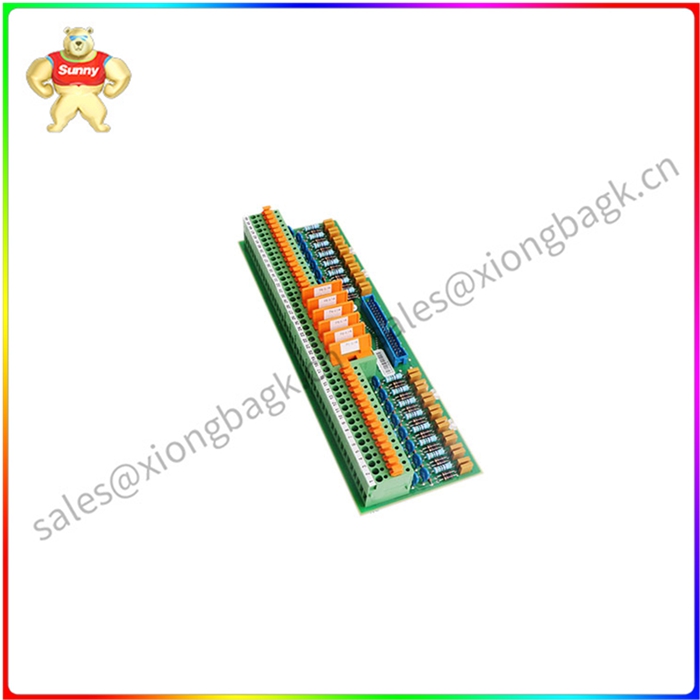

DSTA131 57120001-CV AI板连接单元是ABB制造的AI板连接单元，用于AC800M控制器系列的S800 I/O系统。它旨在将 AI893 和 AI895 模拟输入模块与 AC800M 控制器背板连接和集成，从而能够采集和处理来自各种传感器和传感器的模拟信号。
主要特点：
AI模块连接：DSTA131单元提供 16 个插槽，用于连接 AI893 或 AI895 模拟输入模块，每个单元zui多可连接 128 个模拟输入通道。
背板集成：该装置与 AC800M 控制器背板无缝连接，可在 AI 模块和控制器之间进行数据交换。
电源：该装置为连接的 AI 模块供电，确保其正常运行。
通讯接口：该装置支持Profibus DP和Modbus TCP/IP等通信协议，可与控制和监控系统集成。
紧凑型设计：该装置结构紧凑，重量轻，适用于空间受限的安装。
技术规格：
AI模块兼容性：AI893 和 AI895 模拟量输入模块
插槽数量：16
zui大模拟输入通道数：128
背板连接：AC800M控制器背板
电源：标称 24 VDC，18-32 VDC 工作范围
通讯接口：Profibus DP，Modbus TCP/IP
工作温度：-25°C 至 70°C（-13°F 至 158°F）
储存温度：-40°C 至 85°C（-40°F 至 185°F）
湿度：5% 至 95% RH（非冷凝）
振动：0.5 g rms，57 至 500 Hz
冲击：5 g，22 ms 半正弦波
应用：
DSTA131 57120001-CV AI板连接单元常用于各种工业自动化应用，包括：
过程控制：采集和处理来自传感器和传感器的模拟信号，以监测和控制温度、压力、流量和液位等过程变量。
状态监测：收集和分析来自机器和设备的模拟数据，以检测潜在故障并预测维护需求。
数据采集：从各种来源收集模拟数据，用于分析、可视化和决策目的。
环境监测：测量和监测环境参数，如空气质量、水质和天气状况。
实验室自动化：与实验室仪器和设备集成，用于研究和测试应用中的数据采集和控制。
总体而言，DSTA131 57120001-CV AI板连接单元是工业自动化应用的多功能且可靠的组件，为连接和集成AI893和AI895模拟输入模块提供了可扩展的解决方案，从而实现了来自各种传感器和传感器的高效数据采集和处理。

DSTA131 57120001-CV AI板连接单元

The DSTA131 57120001-CV AI Board Connection unit is an AI board connection unit manufactured by ABB for S800 I/O systems in the AC800M controller family. It is designed to connect and integrate the AI893 and AI895 analog input modules with the AC800M controller backplane, enabling the acquisition and processing of analog signals from a variety of sensors and sensors.
Main features:
AI module connection: The DSTA131 unit provides 16 slots for connecting the AI893 or AI895 analog input modules, with up to 128 analog input channels per unit.
Backplane integration: The unit is seamlessly connected to the AC800M controller backplane for data exchange between the AI module and the controller.
Power supply: This device supplies power to the connected AI module to ensure its normal operation.
Communication interface: The device supports communication protocols such as Profibus DP and Modbus TCP/IP, and can be integrated with control and monitoring systems.
Compact design: The unit is compact and lightweight for space-constrained installations.
Technical specifications:
AI module compatibility: AI893 and AI895 analog input modules
Number of slots: 16
Maximum number of analog input channels: 128
Midplane Connection: AC800M controller midplane
Power supply: Nominal 24 VDC, 18-32 VDC operating range
Communication interface: Profibus DP, Modbus TCP/IP
Operating temperature: -25°C to 70°C (-13°F to 158°F)
Storage temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95% RH (non-condensing)
Vibration: 0.5 g rms, 57 to 500 Hz
Shock: 5 g, 22 ms half sine wave
Applications:
DSTA131 57120001-CV AI board connection units are commonly used in a variety of industrial automation applications, including:
Process control: The acquisition and processing of analog signals from sensors and sensors to monitor and control process variables such as temperature, pressure, flow, and level.
Condition monitoring: Collect and analyze simulated data from machines and equipment to detect potential failures and predict maintenance needs.
Data Acquisition: The collection of simulated data from a variety of sources for analysis, visualization, and decision making purposes.
Environmental monitoring: Measures and monitors environmental parameters such as air quality, water quality and weather conditions.
Laboratory automation: Integration with laboratory instruments and equipment for data acquisition and control in research and test applications.
Overall, the DSTA131 57120001-CV AI Board connection unit is a versatile and reliable component for industrial automation applications, providing a scalable solution for connecting and integrating the AI893 and AI895 analog input modules, enabling efficient data acquisition and processing from a wide range of sensors and sensors.
