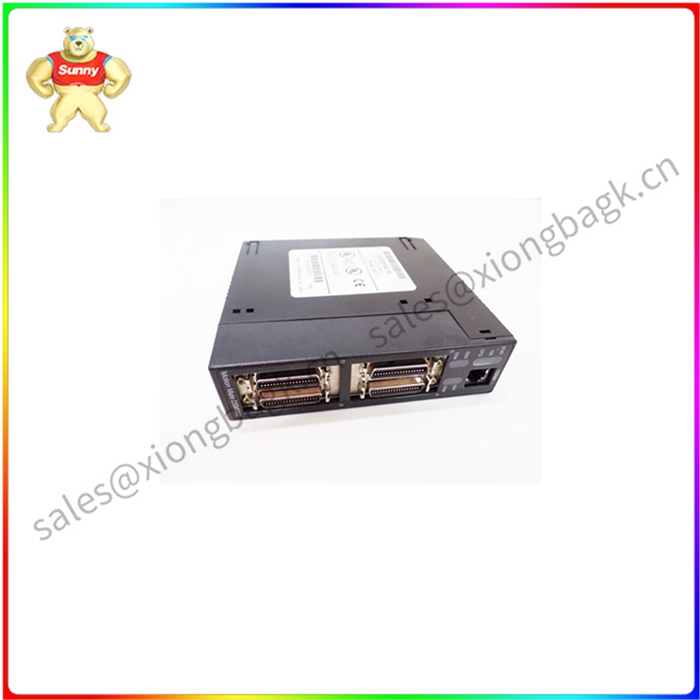

IC693DSM302-AE 90-30 系列运动控制器是专为GE Fanuc 90-30系列PLC设计的高性能运动控制模块。它为工业自动化系统中需要精 确和协调定位电机和其他执行器的应用提供双轴运动控制。
IC693DSM302-AE 90-30 系列运动控制器的主要特性：
两轴运动控制：为电机的点对点和协调运动提供双轴运动控制，实现精 确定位和同步运动。
数字伺服控制：利用数字伺服控制技术实现高精度运动控制，跟踪误差zui小，建立时间快。
速度前馈：采用速度前馈来补偿系统动力学并提高跟踪精度，尤其是在高速行驶时。
位置误差积分器：具有位置误差积分器，可消除稳态位置误差，即使在负载干扰下也能确保准确定位。
高速加工：提供高速处理，块处理时间小于 5 毫秒，为要求苛刻的应用提供实时运动控制。
自动数据传输：在在PLC工作台和运动控制器之间自动传输数据，无需用户编程，简化程序开发。
轻松的 I/O 连接：便于通过工厂电缆和接线端子轻松进行 I/O 连接，zui大限度地降低安装复杂性。
串行端口：包括一个串行端口，用于连接编程设备并实现与外部系统的通信。
IC693DSM302-AE 90-30 系列运动控制器的应用：
输送系统：控制输送机控制输送机，实现精 确的产品处理，排序以及制造和包装应用中的分销。和配送。
机床：协调协调机床中多个轴的运动，如铣床，车床和机械臂，，用于精 确的加工操作。
拾取和放置机器人：控制机器人机械手，在装配线和物料搬运系统中执行准确的拾取和放置任务。
包装机械：在高速生产环境中管理包装机的运动，用于产品包装、贴标和码垛。
测试和测量设备：控制测试夹具和定位装置的运动，用于对组件和组件进行精 确的测试和检查。
总体而言，IC693DSM302-AE 90-30 系列运动控制器是需要精 确和协调运动控制的工业自动化应用的宝贵工具。

IC693DSM302-AE 90-30系列运动控制器

IC693DSM302-AE 90-30 Series Motion controller is a high-performance motion control module designed for GE Fanuc 90-30 series PLC. It provides two-axis motion control for applications in industrial automation systems that require precise and coordinated positioning of motors and other actuators.
Main features of IC693DSM302-AE 90-30 Series Motion controllers:
Two-axis motion control: Provides two-axis motion control for point-to-point and coordinated motion of the motor to achieve accurate positioning and synchronous motion.
Digital servo control: The use of digital servo control technology to achieve high-precision motion control, minimal tracking error, fast establishment time.
Speed feedforward: Speed feedforward is used to compensate system dynamics and improve tracking accuracy, especially at high speeds.
Position error integrator: Has a position error integrator that eliminates steady-state position errors and ensures accurate positioning even under load interference.
High-speed machining: Provides high-speed processing with block processing times of less than 5 milliseconds, providing real-time motion control for demanding applications.
Automatic data transfer: Automatic data transfer between the PLC workbench and the motion controller, without user programming, simplifying program development.
Easy I/O connections: Easy I/O connections via factory cables and terminals minimize installation complexity.
Serial port: Includes a serial port for connecting programming devices and enabling communication with external systems.
IC693DSM302-AE 90-30 series motion controller application:
Conveyor systems: Controlled conveyors Control conveyors for precise product handling, sequencing and distribution in manufacturing and packaging applications. And delivery.
Machine tools: Coordinate the movement of multiple axes in machine tools, such as milling machines, lathes and robotic arms, for precise machining operations.
Pick and place robots: Control robotic manipulators to perform accurate pick and place tasks in assembly lines and material handling systems.
Packaging machinery: Manage the movement of packaging machines in a high-speed production environment for product packaging, labeling and palletizing.
Test and measurement equipment: Controls the movement of test fixtures and positioning devices for accurate testing and inspection of components and assemblies.
Overall, the IC693DSM302-AE 90-30 series motion controllers are an invaluable tool for industrial automation applications that require precise and coordinated motion control.
