PR6423013-030+CON021 涡流信号变换器

PR6423013-030+CON021 涡流信号变换器

PR6423/003-030+CON021是EPRO Technologies制造的涡流信号转换器系统。它旨在通过将涡流传感器产生的涡流信号转换为可由数据采集系统和振动监测设备处理的标准电压信号来测量旋转机械（如轴、轴承和齿轮）中的振动。
PR6423/003-030+CON021涡流信号转换器系统的关键组件：
PR6423/003-030 涡流传感器：这款紧凑型（8mm尖 端）传感器设计为直接安装在被测旋转部件上。它产生涡流信号以响应旋转组件的接近。

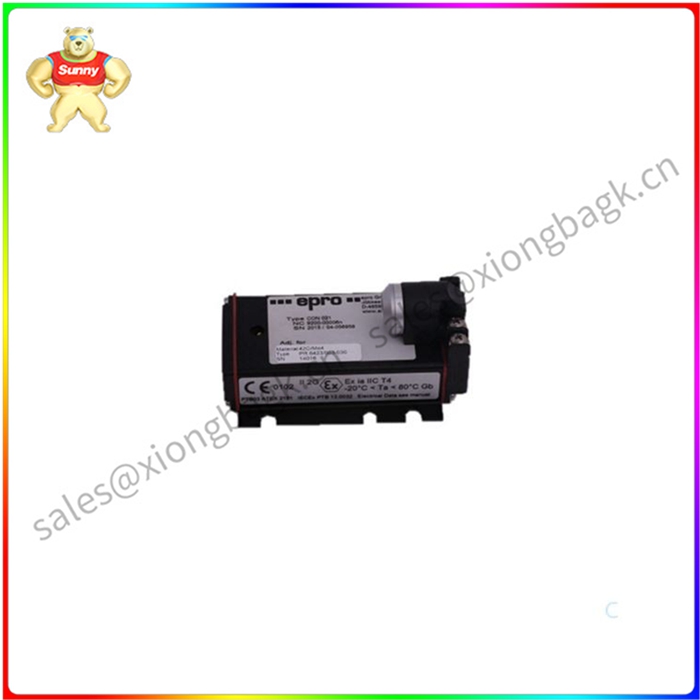

CON021 信号转换器：本单位放大，过滤 器进行放大并调节来自传感器的涡流信号，调理，将其转换为标准电压信号，可供数据采集系统和振动监测设备使用。
PR6423/003-030+CON021涡流信号转换器系统的应用：
预测性维护：监测旋转机械的振动水平，以检测正在发生的故障，并在导致停机之前安排维护。
状态监测：持续监测振动水平，以评估旋转机械的整体健康状况，并在潜在问题变得严重之前识别它们。
根本原因分析：分析振动数据，找出机械问题的根本原因并实施纠正措施。
使用 PR6423/003-030+CON021 涡流信号转换器系统的好处：
非接触式测量：无需改装机械，安装安全简便。
高灵敏度：检测振动的微小变化，，实现早期故障检测。
频率范围宽：捕获各种振动频率，提供全面的分析数据。
坚固的设计：可承受恶劣的工业环境。
PR6423/003-030+CON021涡流信号转换器系统的安装和操作：
传感器安装：将 PR6423/003-030 涡流传感器安装在旋转组件上，确保正确对准和安全安装。
电缆连接：将传感器电缆连接到 CON021 信号转换器输入端子。
输出连接：将信号转换器的输出电缆连接到数据采集系统或振动监测设备输入端子。
系统配置：配置数据采集系统或振动监测设备，以接受来自信号转换器的电压信号并进行适当的分析。
数据收集和分析：随时间推移收集振动数据并对其进行分析，以识别趋势、检测故障和评估机械运行状况。

PR6423013-030+CON021 涡流信号变换器

The PR6423/003-030+CON021 is a vortex signal converter system manufactured by EPRO Technologies. It is designed to measure vibration in rotating machinery, such as shafts, bearings and gears, by converting eddy current signals generated by eddy current sensors into standard voltage signals that can be processed by data acquisition systems and vibration monitoring equipment.
PR6423/003-030+CON021 Key components of the vortex Signal converter system:
PR6423/003-030 Eddy Current Sensor: This compact (8mm tip) sensor is designed to be mounted directly on the rotating part under test. It generates a vortex signal in response to the approach of the rotating component.
CON021 Signal Converter: This unit amplifies and adjusts the eddy current signal from the sensor, conditioning, converting it into a standard voltage signal that can be used by data acquisition systems and vibration monitoring equipment.
PR6423/003-030+CON021 Eddy current Signal Converter system application:
Predictive maintenance: Monitoring the vibration levels of rotating machinery to detect ongoing failures and schedule maintenance before it leads to downtime.
Condition monitoring: Continuously monitor vibration levels to assess the overall health of rotating machinery and identify potential problems before they become serious.
Root cause analysis: Analyze vibration data to identify the root cause of mechanical problems and implement corrective actions.
Benefits of using the PR6423/003-030+CON021 vortex Signal converter system:
Non-contact measurement: no need to modify machinery, safe and easy to install.
High sensitivity: Detect small changes in vibration, enabling early fault detection.
Wide frequency range: Capture a variety of vibration frequencies and provide comprehensive analysis data.
Rugged design: withstand harsh industrial environments.
PR6423/003-030+CON021 Eddy Current Signal Converter system Installation and operation:
Sensor installation: Install the PR6423/003-030 eddy current sensor on the rotating assembly to ensure proper alignment and safe installation.
Cable connection: Connect the sensor cable to the CON021 signal converter input terminal.
Output connection: Connect the output cable of the signal converter to the input terminal of the data acquisition system or vibration monitoring device.
System configuration: Configure a data acquisition system or vibration monitoring device to receive voltage signals from signal converters and perform appropriate analysis.
Data collection and analysis: Vibration data is collected and analyzed over time to identify trends, detect faults and assess machine health.
