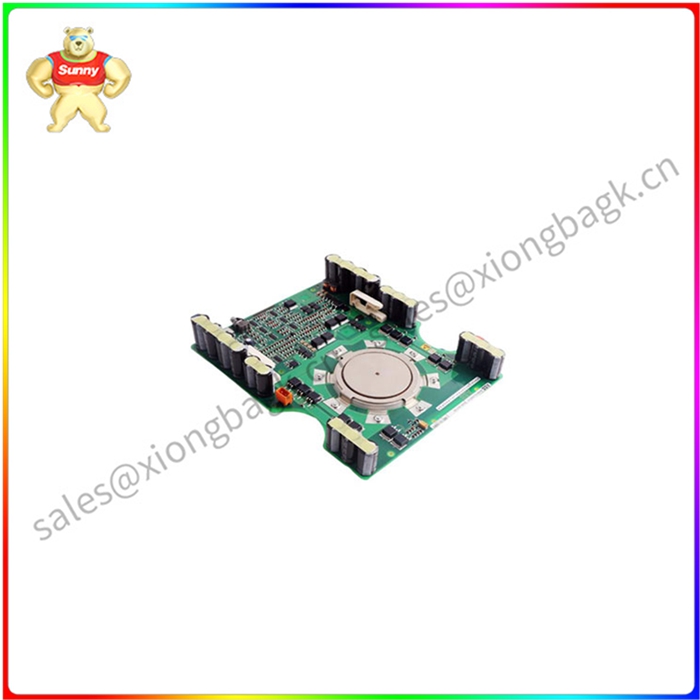

3BHL000392P0101是一款来自ABB的栅极关断晶闸管（GTO）。 它是一种高功率半导体器件，可以切换大电流和电压，使其适用于各种功率控制应用。 3BHL000392P0101 具有紧凑的设计、高效率和低开关损耗，使其成为各种电源转换系统的宝贵工具。
3BHL000392P0101 GTO的主要特点：
高电流和高电压处理：可以切换高达 300 A 的电流和高达 2500 V 的电压，使其适用于大功率应用。
快速切换：提供快速的开启和关闭时间，以实现高效的切换和控制。
低开关损耗：zui大限度地减少开关过程中的能量损失，提高系统效率。
紧凑型设计：允许节省空间地集成到电力电子系统中。
高可靠性：在苛刻的环境中提供可靠的运行。
3BHL000392P0101 GTO的技术规格：
电压阻断能力：2500 伏
zui大正向电流：300 安培
导通电压： 1.2 伏
开启时间：5 微秒
关机时间：10 微秒
栅极电流：5 安培
外壳温度范围：-40°C 至 +125°C
尺寸：76 mm x 32 mm x 25 mm （2.99 英寸 x 1。26 英寸 x 0。98 英寸）
重量：350 克（12.35盎司）
3BHL000392P0101 GTO的应用：
3BHL000392P0101 GTO适用于广泛的应用，包括：
交流电机控制：在各种工业应用中控制交流电机的速度和转矩。
直流电机控制：在牵引和机器人等应用中控制直流电机的速度和扭矩。
电源转换器：将交流电源转换为直流电源，用于各种应用，例如电池充电和电源。
高压开关：在脉冲电源系统和静电除尘器等应用中切换高压。
软起动器：提供电机的软启动和停止，以减少电应力，提高系统效率。

3BHL000392P0101 门极可关断晶闸管 大功率半导体器件

The 3BHL000392P0101 is a grid-off thyristor (GTO) from ABB. It is a high-power semiconductor device that can switch high currents and voltages, making it suitable for a variety of power control applications. The compact design, high efficiency and low switching losses of the 3BHL000392P0101 make it a valuable tool for various power conversion systems.
3BHL000392P0101 GTO Features:
High current and high voltage processing: Current up to 300 A and voltage up to 2500 V can be switched, making it suitable for high-power applications.
Fast switching: Provides fast on and off times for efficient switching and control.
Low switching loss: Minimize energy loss during switching and improve system efficiency.
Compact design: allows space-saving integration into power electronics systems.
High reliability: Provides reliable operation in demanding environments.
Technical specifications of 3BHL000392P0101 GTO:
Voltage blocking capacity: 2500 volts
Maximum forward current: 300 amps
On-off voltage: 1.2 volts
Open time: 5 microseconds
Shutdown time: 10 microseconds
Grid current: 5 amps
Enclosure temperature range: -40°C to +125°C
Dimensions: 76 mm x 32 mm x 25 mm (2.99 inches x 1). 26 inches x 0. 98 inches)
Weight: 350 g (12.35 oz)
3BHL000392P0101 GTO application:
The 3BHL000392P0101 GTO is suitable for a wide range of applications, including:
Ac motor control: Control the speed and torque of AC motors in various industrial applications.
Dc motor control: Control the speed and torque of DC motors in applications such as traction and robotics.
Power converter: Converts AC power to DC power for a variety of applications, such as battery charging and power supplies.
High voltage switch: Switching high voltage in applications such as pulse power systems and electrostatic precipitators.
Soft starter: Provides soft start and stop of the motor to reduce electrical stress and improve system efficiency.
