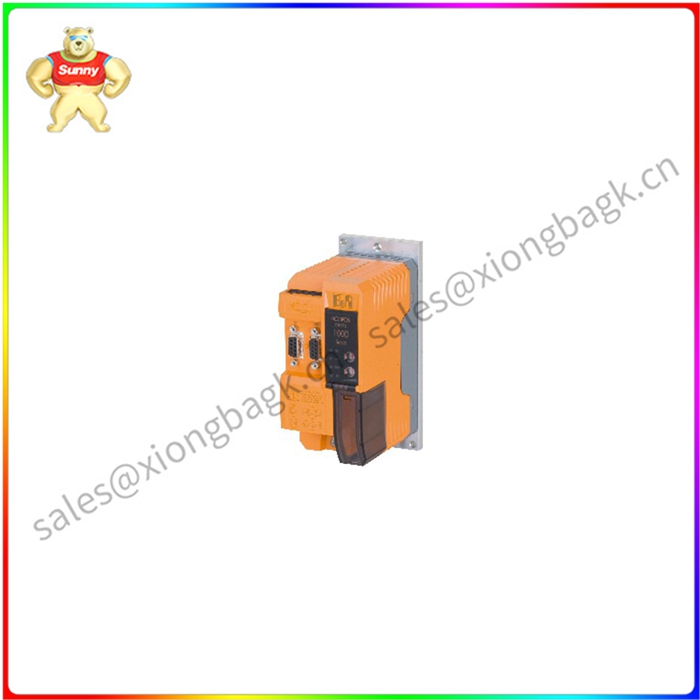

80VD100PD.C0000-01 逆变模块 电机保持制动连接

80VD100PD.C0000-01 逆变模块 电机保持制动连接

80VD100PD.C0000-01 是一款来自伊顿的 100A、400V DC 再生制动模块。它是伊顿 XVM 系列再生制动模块的一部分，旨在在电机减速期间捕获能量并将其反馈给直流母线或交流线路，从而提高能源效率并降低运营成本。80VD100PD.C0000-01 具有设计紧凑、效率高、发热量低等特点，适用于工业自动化系统的广泛应用。
80VD100PD的主要特性。C0000-01 再生制动模块：
高效率：捕获并再利用高达 95% 的制动能量，从而降低能耗和运营成本。
紧凑型设计：节省控制柜空间，并可轻松集成到现有系统中。
低发热：在低温下运行，延长了组件寿命并提高了整体系统可靠性。
电机保持制动器连接：为电机保持制动器提供连接，以确保在停电或紧急停止期间安全运行。
坚固的结构：可承受恶劣的工业环境，并确保长期可靠性。
80VD100PD的技术规格。C0000-01 再生制动模块：
制动电流：100 A 连续
制动电压：高达 400 V DC
功耗：高达 40 kW
效率：高达 95%
防护等级：IP20防护等级
尺寸：230 毫米 x 160 毫米 x 60 毫米（9.06 英寸 x 6.30 英寸 x 2.36 英寸）
重量：3.5 千克（7.72 磅）
80VD100PD.C0000-01 再生制动模块：
80VD100PD.C0000-01 再生制动模块适用于广泛的应用，包括：
起重机和葫芦驱动：在降低操作过程中捕获能量，降低能耗并延长制动器寿命。
输送系统：输送机减速时再生能量，提高能源效率，降低运营成本。
物料搬运设备：在叉车、AGV 和其他物料搬运车辆的制动过程中重新捕获能量。
机床：在机床减速过程中重复利用制动能量，降低能耗，提高整体系统效率。
电梯和自动扶梯：在电梯和自动扶梯向下移动时捕获能量，降低能耗，提高建筑效率。
总体而言，80VD100PD.C0000-01 再生制动模块是一种高效、紧凑、可靠的解决方案，适用于各种工业自动化应用中的能量再生。它能够捕获和再利用制动能量，从而降低能耗，延长制动寿命，并提高整体系统效率，使其成为可持续和具有成本效益的运营的重要组成部分。

80VD100PD.C0000-01 逆变模块 电机保持制动连接

The 80VD100PD.C0000-01 is a 100A, 400V DC regenerative brake module from Eaton. It is part of the Eaton XVM family of regenerative braking modules designed to capture energy during motor deceleration and feed it back to the DC bus or AC line, thereby improving energy efficiency and reducing operating costs. The 80VD100PD.C0000-01 has the characteristics of compact design, high efficiency and low calorific value, which is suitable for a wide range of industrial automation systems.
Main features of 80VD100PD. C0000-01 Regenerative Brake Module:
High efficiency: Up to 95% of braking energy is captured and reused, reducing energy consumption and operating costs.
Compact design: Saves control cabinet space and can be easily integrated into existing systems.
Low heating: Operating at low temperatures extends component life and improves overall system reliability.
Motor hold brake connection: Provides a connection for the motor hold brake to ensure safe operation during a power outage or emergency stop.
Robust construction: Withstands harsh industrial environments and ensures long-term reliability.
Technical specifications for 80VD100PD. C0000-01 Regenerative Brake Module:
Braking current: 100 A continuous
Braking voltage: up to 400 V DC
Power consumption: up to 40 kW
Efficiency: Up to 95%
Protection level: IP20 protection level
Dimensions: 230 mm x 160 mm x 60 mm (9.06 in x 6.30 in x 2.36 in)
Weight: 3.5kg (7.72 lb)
80VD100PD.C0000-01 Regenerative Brake Module:
The 80VD100PD.C0000-01 regenerative brake module is suitable for a wide range of applications, including:
Crane and hoist drives: Capture energy during reduced operation, reducing energy consumption and extending brake life.
Conveyor system: Regenerative energy when the conveyor decelerates, improving energy efficiency and reducing operating costs.
Material handling equipment: Recapture energy during braking of forklifts, AGVs and other material handling vehicles.
Machine tool: The braking energy is reused during the deceleration process of the machine tool, reducing energy consumption and improving the overall system efficiency.
Elevators and escalators: Capture energy as elevators and escalators move down, reducing energy consumption and improving building efficiency.
Overall, the 80VD100PD.C0000-01 regenerative brake module is an efficient, compact and reliable solution for energy regeneration in various industrial automation applications. It is able to capture and reuse braking energy, thereby reducing energy consumption, extending braking life, and improving overall system efficiency, making it an essential part of sustainable and cost-effective operations.
