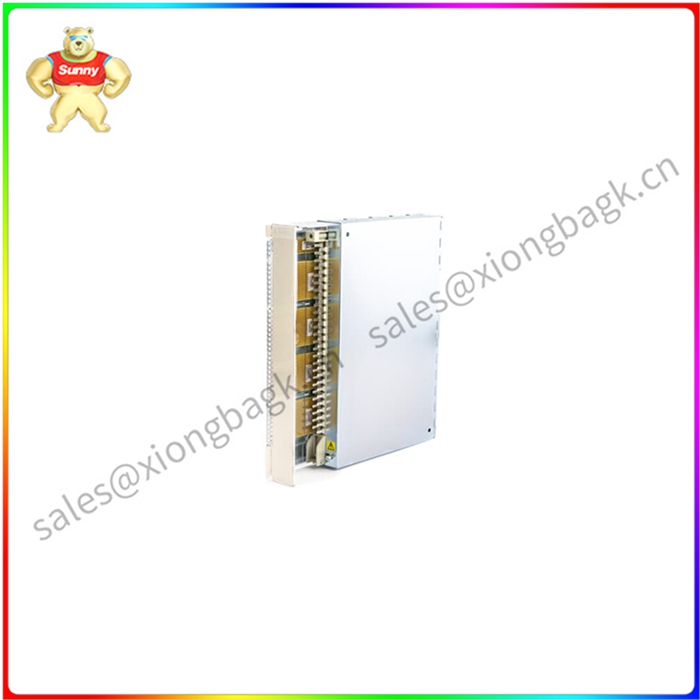

DO620 4 组（隔离） 8 通道/组 32 通道 60VDC 隔离

DO620 4 组（隔离） 8 通道/组 32 通道 60VDC 隔离

DO620是ABB的一款隔离式数字输出模块。 它是 System 800xA 系列 I/O 模块的一部分，旨在为各种工业执行器和设备提供可靠和隔离的控制。 DO620 具有四组隔离的 8 个输出通道，总共 32 个输出通道。 该模块支持广泛的输出电压范围，包括 24 VDC 和 60 VDC。
主要特点：
32 个隔离输出通道：DO620 提供 32 个隔离输出通道，每个都可以配置为单通道或双通道输出。这使得该模块能够控制各种执行器和设备。
高输出功率：每个输出通道可提供高达 2 A 的连续电流，使该模块适用于驱动大功率设备。
快速切换时间：DO620 具有小于 1 ms 的快速开关时间，使其适用于需要快速控制执行器的应用。
配置灵活：DO620可以使用ABB的System 800xA工程工具进行配置。这允许用户轻松定制模块以满足他们的特定需求。
诊断功能：DO620 提供多种诊断功能，有助于确保系统的完整性。这些功能包括自检、信道监测，和故障检测。
应用：
DO620 适用于广泛的工业自动化应用，包括：
机器控制：控制电机、阀门和其他执行器的运行。
过程控制：控制过程控制系统中流体和材料的流动。
机器人：在工业应用中控制机器人的运动。
测试和测量：生成用于测试和校准目的的信号。
原型设计：快速测试和评估数字电路。
技术规格：
通道数：32
输出类型：单通道或双通道数字输出
输出电压范围：24 VDC 或 60 VDC
输出电流：每通道 2 A
切换时间：<1 ms
电源：24 VDC
工作温度：-20°C 至 +60°C
防护等级：IP67

DO620 4 组（隔离） 8 通道/组 32 通道 60VDC 隔离

The DO620 is an isolated digital output module from ABB. It is part of the System 800xA series of I/O modules designed to provide reliable and isolated control for a wide range of industrial actuators and equipment. The DO620 has four isolated sets of eight output channels for a total of 32 output channels. The module supports a wide range of output voltages, including 24 VDC and 60 VDC.
Main features:
32 isolated output channels: The DO620 provides 32 isolated output channels, each of which can be configured for single or dual channel output. This enables the module to control a variety of actuators and devices.
High output power: Each output channel can provide up to 2 A continuous current, making the module suitable for driving high-power devices.
Fast switching time: The DO620 has a fast switching time of less than 1 ms, making it suitable for applications that require fast control of actuators.
Flexible configuration: The DO620 can be configured using ABB's System 800xA engineering tool. This allows users to easily customize modules to meet their specific needs.
Diagnostic capabilities: The DO620 provides a variety of diagnostic capabilities to help ensure system integrity. These features include self-checking, channel monitoring, and fault detection.
Applications:
The DO620 is suitable for a wide range of industrial automation applications, including:
Machine control: Control the operation of motors, valves and other actuators.
Process control: Control the flow of fluids and materials in a process control system.
Robots: Controlling the movement of robots in industrial applications.
Test and measurement: Generate signals for test and calibration purposes.
Prototyping: Rapid test and evaluation of digital circuits.
Technical specifications:
Number of channels: 32
Output type: Single or dual channel digital output
Output voltage range: 24 VDC or 60 VDC
Output current: 2 A per channel
Switching time: <1 ms
Power Supply: 24 VDC
Operating temperature: -20°C to +60°C
Protection level: IP67
