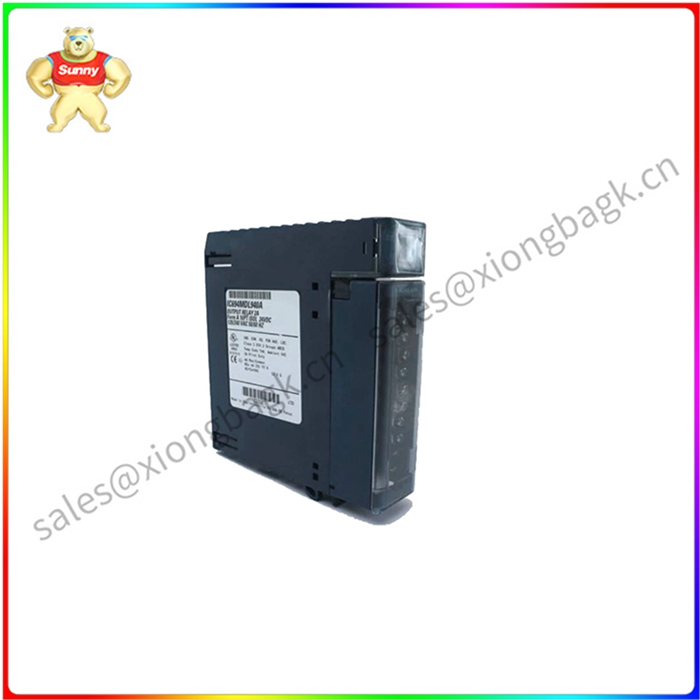

IC694MDL940 16点继电器输出模块

IC694MDL940 16点继电器输出模块

IC694MDL940是用于GE Fanuc RX3i PACSystems系列的16点继电器输出模块。它为工业自动化应用中的各种执行器（如电机、螺线管和指示器）的控制提供了可靠且经济高效的解决方案。
主要特点：
16 个继电器输出，分为 4 组：提供用于控制多个设备的紧凑配置。
2 安培连续输出电流：处理每个输出通道的大量负载。
常开 （NO） 触点：为各种应用提供多功能开关配置。
单独的 LED 状态指示灯：可视化每个继电器输出的 ON/OFF 状态，以便于监控。
24 VDC 或 120/240 VAC 标称电压：适应工业环境中常见的不同电源选项。
单插槽设计：紧凑地安装在 RX3i 系统背板中。
应用：
电机控制：打开和关闭电机，控制电机速度，并管理电机方向。
电磁阀控制：激活和停用阀门、闸门和其他执行器的电磁阀。
指标控制：打开和关闭指示灯、信标和警报信号。
过程控制：通过控制阀门、泵和其他执行器来调节过程参数。
好处：
多面性：使用各种执行器处理各种控制应用。
可靠性：采用成熟的继电器技术，实现可靠运行。
成本效益：为基于继电器的控制任务提供经济高效的解决方案。
易用性：简单的安装和接线要求。

IC694MDL940 16点继电器输出模块

The IC694MDL940 is a 16-point relay output module for the GE Fanuc RX3i PACSystems series. It provides a reliable and cost-effective solution for the control of various actuators such as motors, solenoids and indicators in industrial automation applications.
Main features:
16 relay outputs, divided into 4 groups: Provides compact configuration for controlling multiple devices.
2 amps continuous output current: Handles large loads per output channel.
Normally open (NO) contacts: Multifunctional switching configurations for a variety of applications.
Separate LED status indicator: Visualize the ON/OFF status of each relay output for easy monitoring.
24 VDC or 120/240 VAC nominal voltage: ADAPTS to the different power options commonly found in industrial environments.
Single-slot design: Compact installation in the RX3i system backplane.
Applications:
Motor control: Turn the motor on and off, control the motor speed, and manage the motor direction.
Solenoid valve control: Activate and deactivate solenoid valves for valves, gates and other actuators.
Indicator control: Turn on and off indicators, beacons and alarm signals.
Process control: Regulating process parameters by controlling valves, pumps, and other actuators.
Benefits:
Multifaceted: Handles a variety of control applications using a variety of actuators.
Reliability: The use of mature relay technology to achieve reliable operation.
Cost effective: A cost-effective solution for relay-based control tasks.
Ease of use: Simple installation and wiring requirements.
