产品描述

30V4060 是一款 30 HP GV3000/SE 交流变频器。这是 Reliance Electric 创建的该驱动器的 6.06 版本。Baldor Reliance和ASEA Brown Boveri也可能根据其制造年份生产了这种型号的驱动器。这是传统系列驱动器，可能不容易找到。然而，AX Control 仍然尽一切努力保持库存。

30V4060 是一款三相交流变频器，能够在矢量和伏特/赫兹调节之间切换。它的重量约为 3 磅。它是 32/360 VAC。它的zui大输入电流为 460，频率为 45 Hz。它有一个 60 安培的交流输出。它在 40 VAC 时具有 85 千安的短路系统额定值。

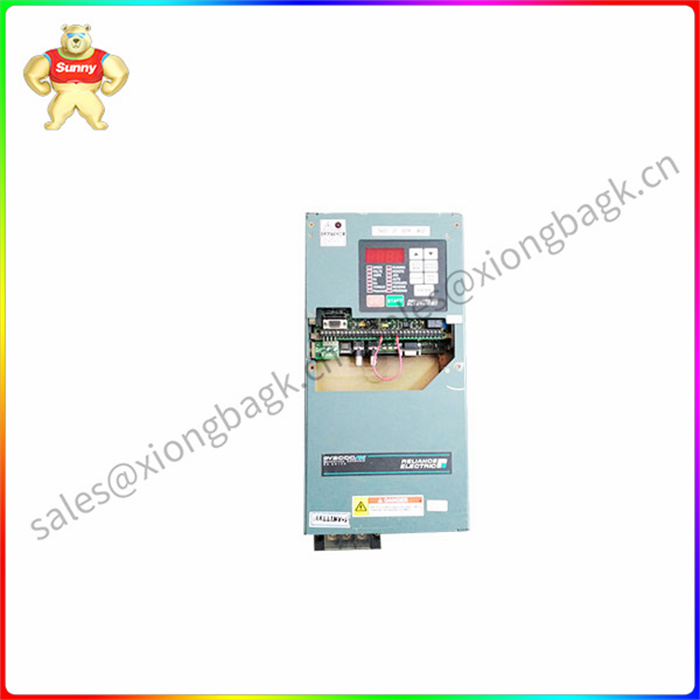

30V4060 被 NEMA 1 型机箱包围。它不能用于外部应用，因为它没有防尘/防滴外壳。它的侧面和背面包含通风口。在面板右上角的键盘下方有一个 RS-232 9 针母头连接端口。面板的左上角是一个大的红色电源 LED 灯，当驱动器通电时会亮起。GV30变频器的4060V3000型号机箱配备：

底部有一个大端子排，带有三个端子螺钉。
驱动器顶部有一个较小的端子排，带有五个相应的端子螺钉
所有 GV/3000 SE 驱动器的内置键盘标准配置。键盘允许用户通过提供清晰的显示来读取位于调节器上的显示。调节器使用连接到键盘的支架连接到键盘。

30V4060 是一款 30 HP GV3000/SE 交流变频器

Product description

The 30V4060 is a 30 HP GV3000/SE AC frequency converter. This is version 6.06 of this drive created by Reliance Electric. Baldor Reliance and ASEA Brown Boveri may also have produced this model of drive based on their year of manufacture. This is a traditional series drive and may not be easy to find. However, AX Control still makes every effort to maintain inventory.

The 30V4060 is a three-phase AC inverter capable of switching between vector and volt/Hertz regulation. It weighs about 3 pounds. It's 32/360 VAC. It has a maximum input current of 460 and a frequency of 45 Hz. It has a 60 amp AC output. It has a short-circuit system rating of 85 kiloamps at 40 VAC.

The 30V4060 is surrounded by a NEMA Type 1 chassis. It cannot be used for external applications because it does not have a dust/drip proof housing. Its sides and back contain vents. There is an RS-232 9-pin female connector under the keyboard in the upper right corner of the panel. In the upper left corner of the panel is a large red power LED light that lights up when the drive is powered on. The 4060V3000 model chassis of the GV30 inverter is equipped with:

There is a large terminal block on the bottom with three terminal screws.
There is a smaller terminal block at the top of the driver with five corresponding terminal screws
The built-in keyboard is standard on all GV/3000 SE drives. The keyboard allows the user to read the display located on the regulator by providing a clear display. The regulator is connected to the keyboard using a stand that is connected to the keyboard.
