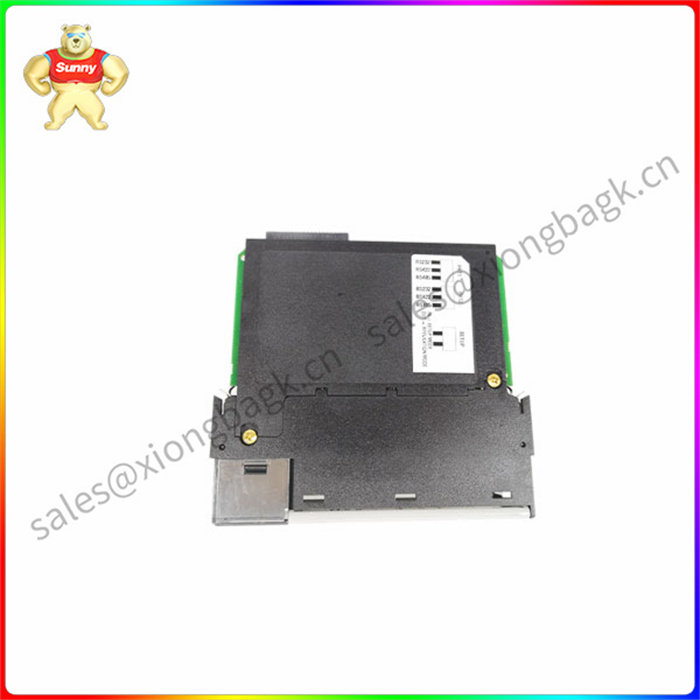

MVI56E-MCMR是一个ProSoft技术通信模块，一个Allen-Bradley inclusive合作伙伴公司。该模块支持MODBUS串行/ ASCII通信，并配有双RS232串行应用端口。这些端口支持RS232 / RS485和RS422电气标准，波特率可配置为110波特至115.2 kbps。可接受的串行设置包括无、奇数或偶数奇偶校验、数据位5、6、7和8；停止位为1或2，RTS开/关延迟为0-65535毫秒。该模块还带有一个RJ45以太网端口形式的调试/配置端口。该端口支持10/100 base-T传输速度，具有链路和活动LED指示灯以及自动交叉电缆检测。

MVI56E-MCMR是一个单槽模块，可直接安装到任何1756机箱上。

要配置模块操作和参数，可以使用ProSoft Configuration Builder(PCB)和产品发现服务(PDS)。

随着数据块的减少，MVI56E-MCMR需要更少的背板/网络带宽，并支持更简单的调度和通过控制网络的传输。此外，当与ControlNet通信适配器和冗余控制器一起使用时，简化的数据块实际上用于远程机箱安装。

要安装Prosoft MVI56E-MCMR模块，用户必须有一个Allen-Bradley ControlLogix处理器，在机架上有一个用于Modbus模块的空闲插槽，并有800 mA的可用电源和5伏DC背板电源。该设备还需要来自24伏DC电源的额外3 mA电流。这种增强型Modbus主/从通信模块可以在-40至85摄氏度(-40至185华氏度)的温度范围内储存，但只能在0至60摄氏度(32至140华氏度)的温度范围内使用。对于MVI56E-MCMR和处理器之间的数据传输，使用样本梯形指令或附加指令。在设备的前上方，有一个滚动的LED显示屏，显示4个字符，以简单的英语显示状态和诊断信息。该模块有一个CF卡选项，用于存储所有用户的配置设置。通过这种方式，用户可以用新模块替换有缺陷的模块，并从CF卡中快速现场传输所有设置和数据。

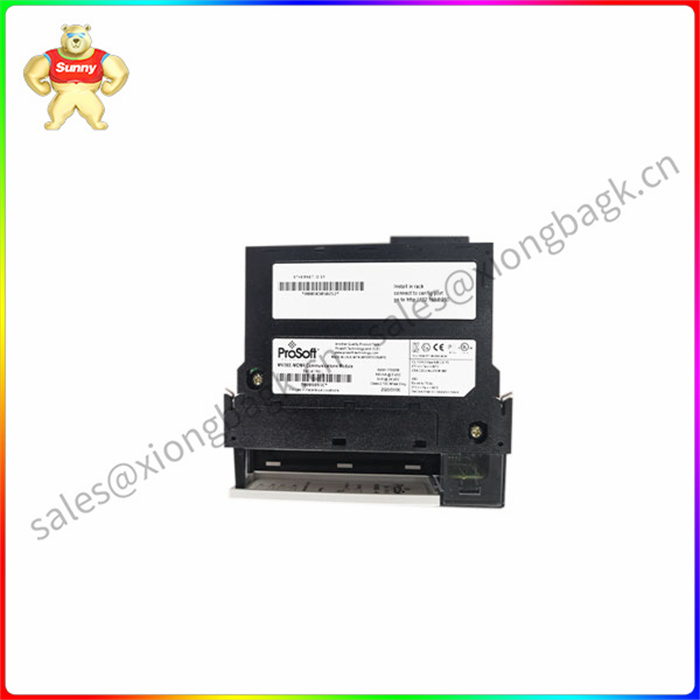

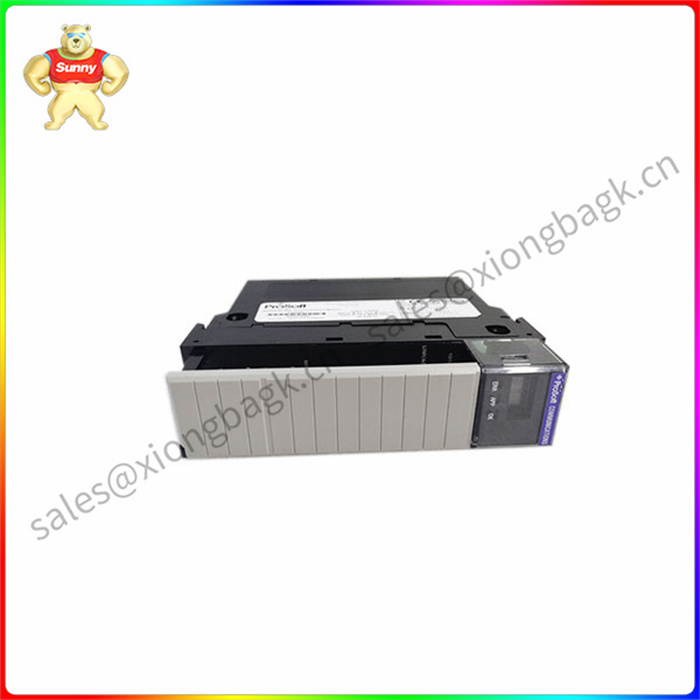

MVI56E-MCMR roSoft技术通信模块 支持MODBUS串行

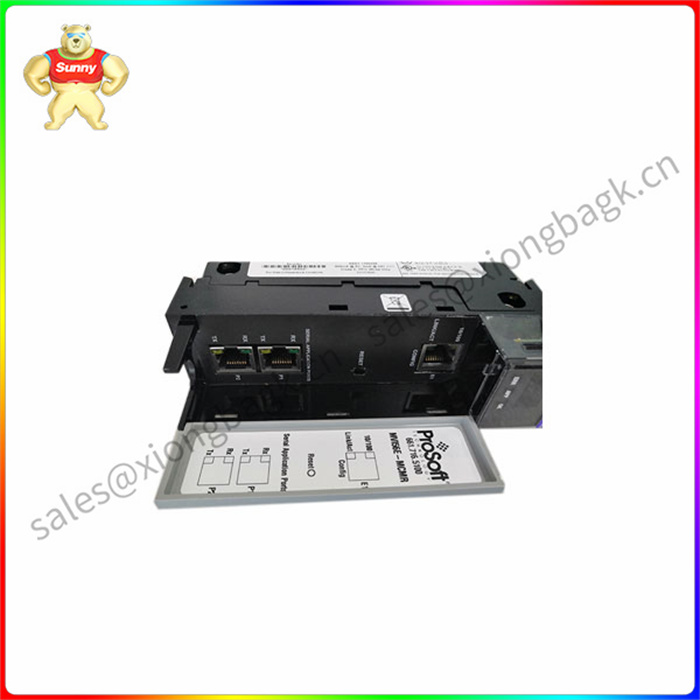

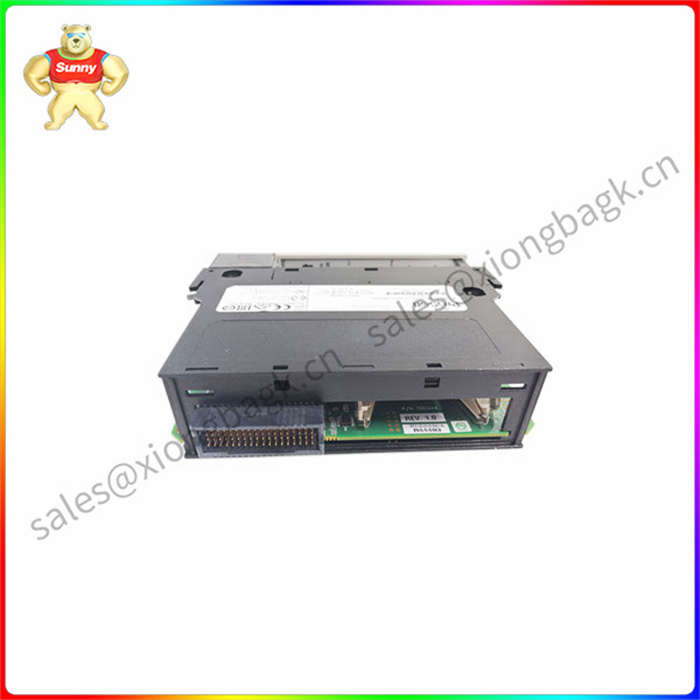

The MVI56E-MCMR is a ProSoft technology communication module, an Allen-Bradley inclusive partner company. The module supports MODBUS serial/ASCII communication and is equipped with dual RS232 serial application ports. These ports support the RS232 / RS485 and RS422 electrical standards and can be configured with a baud rate from 110 baud to 115.2 kbps. Acceptable serial Settings include none, odd or even parity, data bits 5, 6, 7, and 8; The stop bit is 1 or 2, and the RTS on/off delay is 0-65535 ms. The module also comes with a debugging/configuration port in the form of an RJ45 Ethernet port. The port supports 10/100 base-T transfer speeds, has link and active LED indicators, and automatic cross-cable detection.

The MVI56E-MCMR is a single slot module that can be installed directly into any 1756 chassis.

To configure module operations and parameters, you can use ProSoft Configuration Builder(PCB) and Product Discovery Service (PDS).

With fewer data blocks, the MVI56E-MCMR requires less backplane/network bandwidth and supports simpler scheduling and transmission through the control network. In addition, when used with ControlNet communication adapters and redundant controllers, simplified data blocks are actually used for remote chassis installation.

To install the Prosoft MVI56E-MCMR module, users must have an Allen-Bradley ControlLogix processor, a free slot in the rack for Modbus modules, and an 800 mA available power supply and a 5 volt DC backplane power supply. The device also requires an additional 3 mA of current from a 24-volt DC power supply. This enhanced Modbus master/slave communication module can be stored in a temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), but can only be used in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). For data transfer between the MVI56E-MCMR and the processor, sample ladder instructions or additional instructions are used. On the top front of the device, there is a scrolling LED display with 4 characters showing status and diagnostic information in plain English. The module has a CF card option to store configuration Settings for all users. In this way, users can replace defective modules with new ones and quickly transfer all Settings and data on-site from the CF card.
