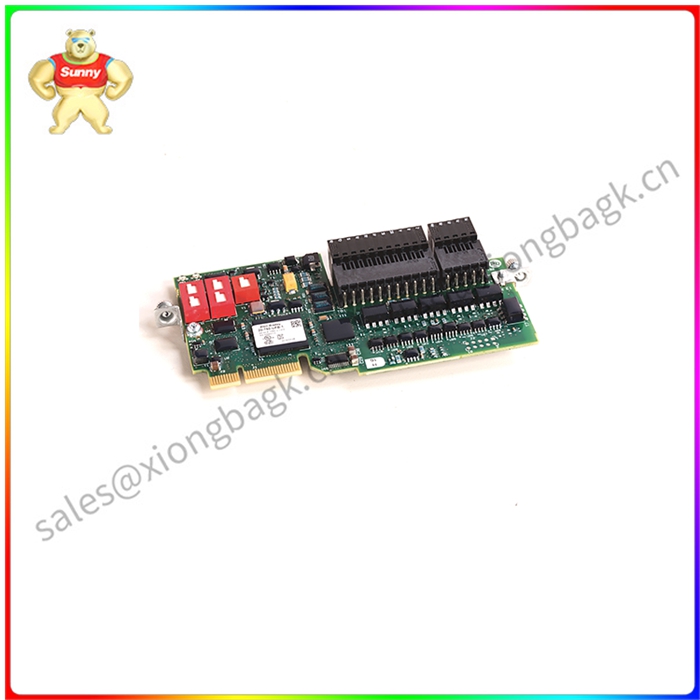

艾伦-布拉德利20-750-UFB-1模块是一个PowerFlex 750通用反馈选项模块。使用安全速度监控选项模块时，只有PowerFlex 755变频器支持20-750-UFB-1模块(安全速度监控选项必须与20-750-UFB-1模块或目录号为20-750-DENC-1的双增量编码器一起使用)。20-750-UFB-1模块上有两个状态指示灯:指示灯1用于显示20-750-UFB-1模块板的状态，指示灯2用于显示DPI通信接口的状态。20-750-UFB-1模块上提供了DIP开关用于配置，当将反馈信号连接到主要安全通道时，DIP开关设置将为S1开、S2关和S3开，当将反馈信号连接到次要安全通道DIP开关时，设置将为S1关、S2开和S3开。当将反馈信号连接到DIP开关的主要和次要通道时，设置将为S1开、S2开和S3开。当PowerFlex 755驱动器用作集成运动系统的一部分时，20-750-UFB-1模块可用于不同的组合。当使用2个反馈选项和I/O时，20-750-UFB-1模块将用于端口4至6。当使用2个反馈选项、1个安全扭矩关闭选项和I/O时，20-750-UFB-1模块可用于端口4和5。当使用2个反馈选项、1个安全速度监控选项和I/O时，20-750-UFB-1模块可用于端口4和5。

20-750-UFB-1是艾伦-布拉德利的通用反馈编码器模块。该模块是一个附件模块，与安装的安全速度监视器选项模块一起与PowerFlex 755驱动器兼容使用。该模块可与Allen-Bradley PowerFlex 755、PowerFlex 755TL和PowerFlex 755TR可调频率交流驱动器一起安装。

20-750-UFB-1 PowerFlex 750通用反馈选项模块

The Allen-Bradley 20-750-UFB-1 module is a PowerFlex 750 Universal feedback option module. When using the Safe Speed Monitoring option module, only the PowerFlex 755 drives support the 20-750-UFB-1 module (The Safe speed monitoring option must be used with the 20-750-UFB-1 module or the dual increment encoder with the directory number 20-750-DENC-1). There are two status indicators on the 20-750-UFB-1 module: Indicator 1 shows the status of the 20-750-UFB-1 module board, and indicator 2 shows the status of the DPI communication port. The DIP switch is provided on the 20-750-UFB-1 module for configuration. When the feedback signal is connected to the primary safety channel, the DIP switch Settings will be S1 on, S2 off and S3 on. When the feedback signal is connected to the DIP switch of the secondary safety channel, the DIP switch Settings will be S1 off, S2 on and S3 on. When connecting the feedback signal to the primary and secondary channels of the DIP switch, the Settings will be S1 on, S2 on, and S3 on. When the PowerFlex 755 drive is used as part of an integrated motion system, the 20-750-UFB-1 module can be used in different combinations. When using 2 feedback options and I/O, the 20-750-UFB-1 module will be used for ports 4 to 6. When using 2 feedback options, 1 safe torque off option and I/O, the 20-750-UFB-1 module is available for ports 4 and 5. When using 2 feedback options, 1 safe speed monitoring option and I/O, the 20-750-UFB-1 module is available for ports 4 and 5.

The 20-750-UFB-1 is Allen Bradley's universal feedback encoder module. This module is an accessory module that is compatible with PowerFlex 755 drives in conjunction with the installed Safe Speed Monitor option module. The module can be installed with Allen-Bradley PowerFlex 755, PowerFlex 755TL, and PowerFlex 755TR tunable frequency AC drives.
